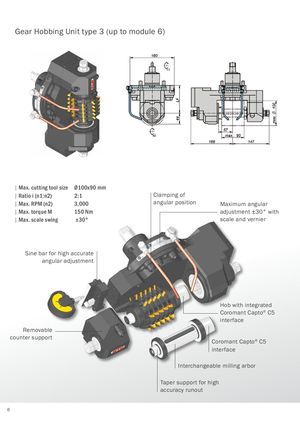

Gear Hobbing Unit type 3 (up to module 6) ||Max. cutting tool size Ø100x90 mm ||Ratio i (n1:n2) 2:1 Clamping of ||Max. RPM (n2) 3,000 angular position Maximum angular ||Max. torque M 150 Nm adjustment ±30° with ||Max. scale swing ±30° scale and vernier Sine bar for high accurate angular adjustment Hob with integrated Coromant Capto® C5 interface Removable counter support Coromant Capto® C5 interface Interchangeable milling arbor Taper support for high accuracy runout 6
