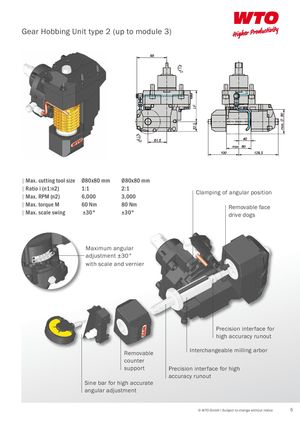

Gear Hobbing Unit type 2 (up to module 3) ||Max. cutting tool size Ø80x80 mm Ø80x80 mm ||Ratio i (n1:n2) 1:1 2:1 Clamping of angular position ||Max. RPM (n2) 6,000 3,000 ||Max. torque M 60 Nm 80 Nm Removable face ||Max. scale swing ±30° ±30° drive dogs Maximum angular adjustment ±30° with scale and vernier Precision interface for high accuracy runout Removable Interchangeable milling arbor counter support Precision interface for high accuracy runout Sine bar for high accurate angular adjustment © WTO GmbH I Subject to change without notice 5
