Каталог WTO инструмент для обрабатывающих центров - страница 46

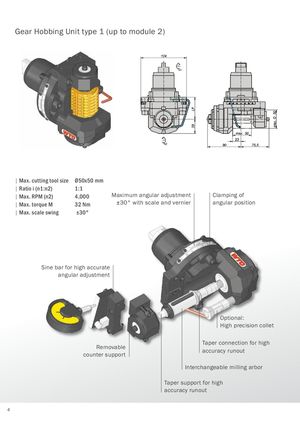

Gear Hobbing Unit type 1 (up to module 2) ||Max. cutting tool size Ø50x50 mm ||Ratio i (n1:n2) 1:1 ||Max. RPM (n2) 4,000 Maximum angular adjustment Clamping of ||Max. torque M 32 Nm ±30° with scale and vernier angular position ||Max. scale swing ±30° Sine bar for high accurate angular adjustment Optional: High precision collet Taper connection for high Removablecounter support accuracy runout Interchangeable milling arbor Taper support for high accuracy runout 4
