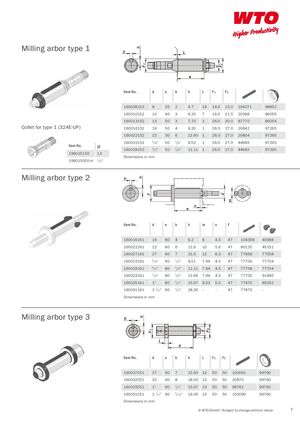

Milling arbor type 1 Item No. d e b h L F1 F2 160008152 8 35 2 4.7 14 14.0 15.0 104271 98852 160010152 10 40 3 6.20 7 16.0 21.5 20588 86055 160013152 13 50 3 7.70 1 26.0 20.0 87770 86054 Collet for type 1 (324E-UP) 160016152 16 50 4 9.20 1 26.0 27.0 20642 97265 160022152 22 50 6 12.60 1 26.0 27.0 20804 97265 160015152 5/8" 50 1/8" 9.52 1 26.0 27.0 44683 97265 Item No. Ø 160019152 3/4" 50 1/8" 11.11 1 26.0 27.0 44683 97265 199015130 13 Dimensions in mm 199015050-in 1/2" Milling arbor type 2 Item No. d e b h m n F 160016161 16 80 4 9.2 8 4.5 47 104358 45988 160022161 22 80 6 12.6 10 5.6 47 80120 45151 160027161 27 80 7 15.5 12 6.3 47 77856 77558 160015161 5/8" 80 1/8" 9.51 7.94 4.5 47 77705 77704 160019161 3/4" 80 1/8" 11.11 7.94 4.5 47 77706 77704 160023161 7/8" 80 1/8" 12.69 7.94 4.5 47 77705 91840 160025161 1" 80 1/4" 15.07 9.53 5.0 47 77870 85352 160031161 1 1/4" 80 1/4" 18.26 – – 47 77870 – Dimensions in mm Milling arbor type 3 Item No. d e b h L F1 F2 160027C51 27 90 7 15.50 13 50 50 100091 99760 160032C51 32 90 8 18.00 13 50 50 20870 99760 160025C51 1" 90 1/4" 15.07 13 50 50 99761 99760 160031C51 1 1/4" 90 5/16" 19.05 13 50 50 100090 99760 Dimensions in mm © WTO GmbH I Subject to change without notice 7
