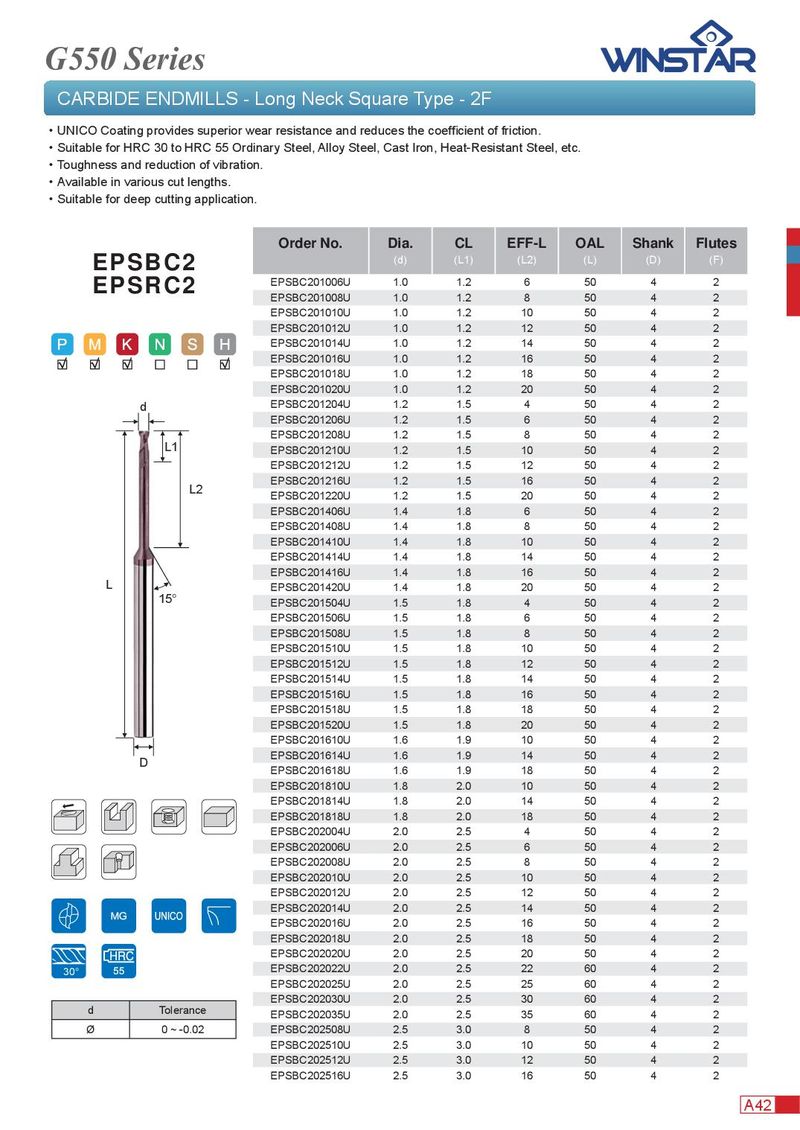

G550 Series CARBIDE ENDMILLS - Long Neck Square Type - 2F ． UNICO Coating provides superior wear resistance and reduces the coeffi cient of friction. ． Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ． Toughness and reduction of vibration. ． Available in various cut lengths. ． Suitable for deep cutting application. Order No. Dia. CL EFF-L OAL Shank Flutes (d) (L1) (L2) (L) (D) (F) EPSBC2 EPSBC201006U 1.0 1.2 6 50 4 2 EPSRC2 EPSBC201008U 1.0 1.2 8 50 4 2 EPSBC201010U 1.0 1.2 10 50 4 2 EPSBC201012U 1.0 1.2 12 50 4 2 EPSBC201014U 1.0 1.2 14 50 4 2 EPSBC201016U 1.0 1.2 16 50 4 2 EPSBC201018U 1.0 1.2 18 50 4 2 EPSBC201020U 1.0 1.2 20 50 4 2 d EPSBC201204U 1.2 1.5 4 50 4 2 EPSBC201206U 1.2 1.5 6 50 4 2 EPSBC201208U 1.2 1.5 8 50 4 2 L1 EPSBC201210U 1.2 1.5 10 50 4 2 EPSBC201212U 1.2 1.5 12 50 4 2 EPSBC201216U 1.2 1.5 16 50 4 2 L2 EPSBC201220U 1.2 1.5 20 50 4 2 EPSBC201406U 1.4 1.8 6 50 4 2 EPSBC201408U 1.4 1.8 8 50 4 2 EPSBC201410U 1.4 1.8 10 50 4 2 EPSBC201414U 1.4 1.8 14 50 4 2 EPSBC201416U 1.4 1.8 16 50 4 2 L EPSBC201420U 1.4 1.8 20 50 4 2 15° EPSBC201504U 1.5 1.8 4 50 4 2 EPSBC201506U 1.5 1.8 6 50 4 2 EPSBC201508U 1.5 1.8 8 50 4 2 EPSBC201510U 1.5 1.8 10 50 4 2 EPSBC201512U 1.5 1.8 12 50 4 2 EPSBC201514U 1.5 1.8 14 50 4 2 EPSBC201516U 1.5 1.8 16 50 4 2 EPSBC201518U 1.5 1.8 18 50 4 2 EPSBC201520U 1.5 1.8 20 50 4 2 EPSBC201610U 1.6 1.9 10 50 4 2 EPSBC201614U 1.6 1.9 14 50 4 2 D EPSBC201618U 1.6 1.9 18 50 4 2 EPSBC201810U 1.8 2.0 10 50 4 2 EPSBC201814U 1.8 2.0 14 50 4 2 EPSBC201818U 1.8 2.0 18 50 4 2 EPSBC202004U 2.0 2.5 4 50 4 2 EPSBC202006U 2.0 2.5 6 50 4 2 EPSBC202008U 2.0 2.5 8 50 4 2 EPSBC202010U 2.0 2.5 10 50 4 2 EPSBC202012U 2.0 2.5 12 50 4 2 EPSBC202014U 2.0 2.5 14 50 4 2 EPSBC202016U 2.0 2.5 16 50 4 2 EPSBC202018U 2.0 2.5 18 50 4 2 EPSBC202020U 2.0 2.5 20 50 4 2 30° EPSBC202022U 2.0 2.5 22 60 4 2 EPSBC202025U 2.0 2.5 25 60 4 2 EPSBC202030U 2.0 2.5 30 60 4 2 d Tolerance EPSBC202035U 2.0 2.5 35 60 4 2 Ø 0 ~ -0.02 EPSBC202508U 2.5 3.0 8 50 4 2 EPSBC202510U 2.5 3.0 10 50 4 2 EPSBC202512U 2.5 3.0 12 50 4 2 EPSBC202516U 2.5 3.0 16 50 4 2 A42
