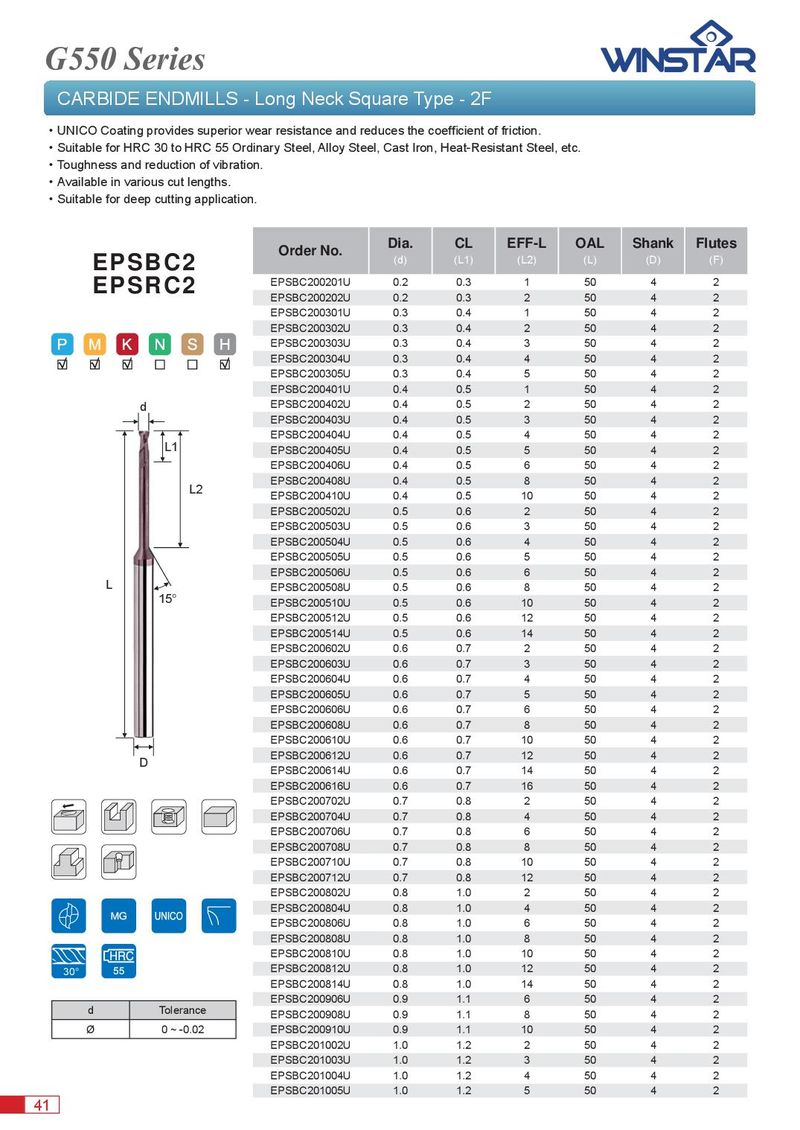

G550 Series CARBIDE ENDMILLS - Long Neck Square Type - 2F ． UNICO Coating provides superior wear resistance and reduces the coeffi cient of friction. ． Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ． Toughness and reduction of vibration. ． Available in various cut lengths. ． Suitable for deep cutting application. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EPSBC2 EPSBC200201U 0.2 0.3 1 50 4 2 EPSRC2 EPSBC200202U 0.2 0.3 2 50 4 2 EPSBC200301U 0.3 0.4 1 50 4 2 EPSBC200302U 0.3 0.4 2 50 4 2 EPSBC200303U 0.3 0.4 3 50 4 2 EPSBC200304U 0.3 0.4 4 50 4 2 EPSBC200305U 0.3 0.4 5 50 4 2 EPSBC200401U 0.4 0.5 1 50 4 2 d EPSBC200402U 0.4 0.5 2 50 4 2 EPSBC200403U 0.4 0.5 3 50 4 2 EPSBC200404U 0.4 0.5 4 50 4 2 L1 EPSBC200405U 0.4 0.5 5 50 4 2 EPSBC200406U 0.4 0.5 6 50 4 2 EPSBC200408U 0.4 0.5 8 50 4 2 L2 EPSBC200410U 0.4 0.5 10 50 4 2 EPSBC200502U 0.5 0.6 2 50 4 2 EPSBC200503U 0.5 0.6 3 50 4 2 EPSBC200504U 0.5 0.6 4 50 4 2 EPSBC200505U 0.5 0.6 5 50 4 2 EPSBC200506U 0.5 0.6 6 50 4 2 L EPSBC200508U 0.5 0.6 8 50 4 2 15° EPSBC200510U 0.5 0.6 10 50 4 2 EPSBC200512U 0.5 0.6 12 50 4 2 EPSBC200514U 0.5 0.6 14 50 4 2 EPSBC200602U 0.6 0.7 2 50 4 2 EPSBC200603U 0.6 0.7 3 50 4 2 EPSBC200604U 0.6 0.7 4 50 4 2 EPSBC200605U 0.6 0.7 5 50 4 2 EPSBC200606U 0.6 0.7 6 50 4 2 EPSBC200608U 0.6 0.7 8 50 4 2 EPSBC200610U 0.6 0.7 10 50 4 2 EPSBC200612U 0.6 0.7 12 50 4 2 D EPSBC200614U 0.6 0.7 14 50 4 2 EPSBC200616U 0.6 0.7 16 50 4 2 EPSBC200702U 0.7 0.8 2 50 4 2 EPSBC200704U 0.7 0.8 4 50 4 2 EPSBC200706U 0.7 0.8 6 50 4 2 EPSBC200708U 0.7 0.8 8 50 4 2 EPSBC200710U 0.7 0.8 10 50 4 2 EPSBC200712U 0.7 0.8 12 50 4 2 EPSBC200802U 0.8 1.0 2 50 4 2 EPSBC200804U 0.8 1.0 4 50 4 2 EPSBC200806U 0.8 1.0 6 50 4 2 EPSBC200808U 0.8 1.0 8 50 4 2 EPSBC200810U 0.8 1.0 10 50 4 2 30° EPSBC200812U 0.8 1.0 12 50 4 2 EPSBC200814U 0.8 1.0 14 50 4 2 EPSBC200906U 0.9 1.1 6 50 4 2 d Tolerance EPSBC200908U 0.9 1.1 8 50 4 2 Ø 0 ~ -0.02 EPSBC200910U 0.9 1.1 10 50 4 2 EPSBC201002U 1.0 1.2 2 50 4 2 EPSBC201003U 1.0 1.2 3 50 4 2 EPSBC201004U 1.0 1.2 4 50 4 2 EPSBC201005U 1.0 1.2 5 50 4 2 41
