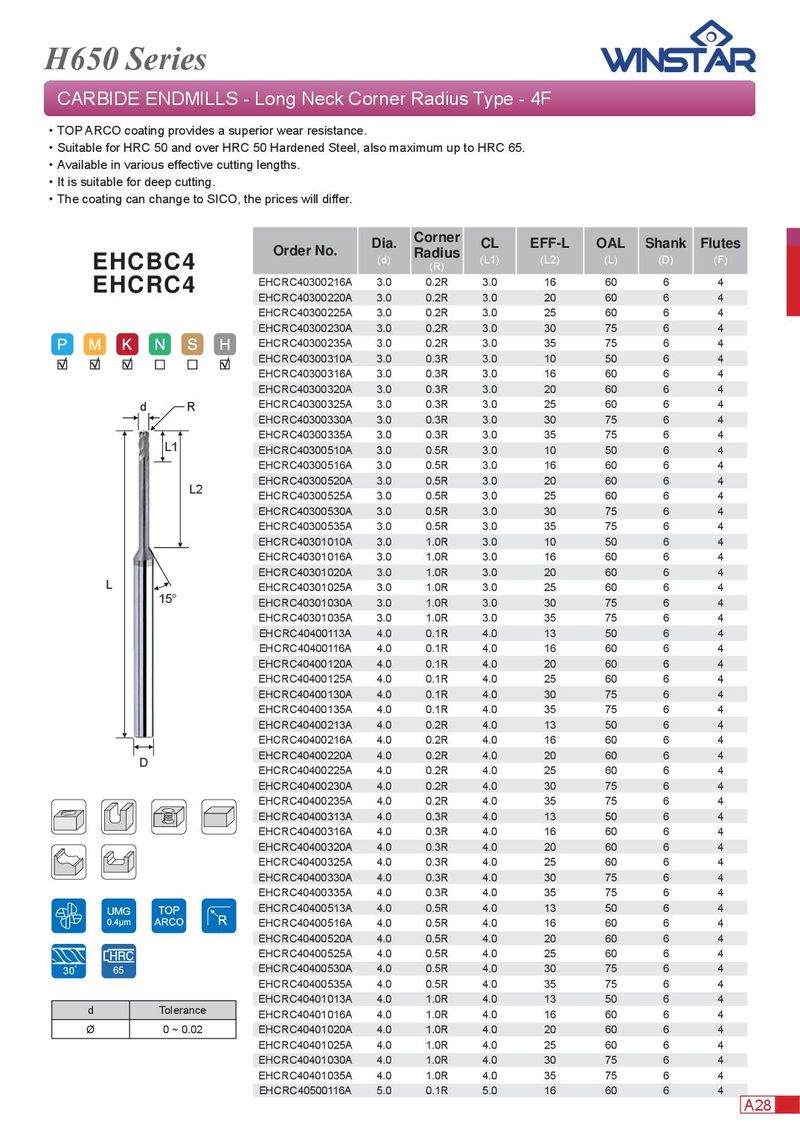

H650 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 4F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC40300216A 3.0 0.2R 3.0 16 60 6 4 EHCRC4 EHCRC40300220A 3.0 0.2R 3.0 20 60 6 4 EHCRC40300225A 3.0 0.2R 3.0 25 60 6 4 EHCRC40300230A 3.0 0.2R 3.0 30 75 6 4 EHCRC40300235A 3.0 0.2R 3.0 35 75 6 4 EHCRC40300310A 3.0 0.3R 3.0 10 50 6 4 EHCRC40300316A 3.0 0.3R 3.0 16 60 6 4 EHCRC40300320A 3.0 0.3R 3.0 20 60 6 4 d R EHCRC40300325A 3.0 0.3R 3.0 25 60 6 4 EHCRC40300330A 3.0 0.3R 3.0 30 75 6 4 EHCRC40300335A 3.0 0.3R 3.0 35 75 6 4 L1 EHCRC40300510A 3.0 0.5R 3.0 10 50 6 4 EHCRC40300516A 3.0 0.5R 3.0 16 60 6 4 EHCRC40300520A 3.0 0.5R 3.0 20 60 6 4 L2 EHCRC40300525A 3.0 0.5R 3.0 25 60 6 4 EHCRC40300530A 3.0 0.5R 3.0 30 75 6 4 EHCRC40300535A 3.0 0.5R 3.0 35 75 6 4 EHCRC40301010A 3.0 1.0R 3.0 10 50 6 4 EHCRC40301016A 3.0 1.0R 3.0 16 60 6 4 EHCRC40301020A 3.0 1.0R 3.0 20 60 6 4 L EHCRC40301025A 3.0 1.0R 3.0 25 60 6 4 15° EHCRC40301030A 3.0 1.0R 3.0 30 75 6 4 EHCRC40301035A 3.0 1.0R 3.0 35 75 6 4 EHCRC40400113A 4.0 0.1R 4.0 13 50 6 4 EHCRC40400116A 4.0 0.1R 4.0 16 60 6 4 EHCRC40400120A 4.0 0.1R 4.0 20 60 6 4 EHCRC40400125A 4.0 0.1R 4.0 25 60 6 4 EHCRC40400130A 4.0 0.1R 4.0 30 75 6 4 EHCRC40400135A 4.0 0.1R 4.0 35 75 6 4 EHCRC40400213A 4.0 0.2R 4.0 13 50 6 4 EHCRC40400216A 4.0 0.2R 4.0 16 60 6 4 EHCRC40400220A 4.0 0.2R 4.0 20 60 6 4 D EHCRC40400225A 4.0 0.2R 4.0 25 60 6 4 EHCRC40400230A 4.0 0.2R 4.0 30 75 6 4 EHCRC40400235A 4.0 0.2R 4.0 35 75 6 4 EHCRC40400313A 4.0 0.3R 4.0 13 50 6 4 EHCRC40400316A 4.0 0.3R 4.0 16 60 6 4 EHCRC40400320A 4.0 0.3R 4.0 20 60 6 4 EHCRC40400325A 4.0 0.3R 4.0 25 60 6 4 EHCRC40400330A 4.0 0.3R 4.0 30 75 6 4 EHCRC40400335A 4.0 0.3R 4.0 35 75 6 4 EHCRC40400513A 4.0 0.5R 4.0 13 50 6 4 EHCRC40400516A 4.0 0.5R 4.0 16 60 6 4 EHCRC40400520A 4.0 0.5R 4.0 20 60 6 4 EHCRC40400525A 4.0 0.5R 4.0 25 60 6 4 65 EHCRC40400530A 4.0 0.5R 4.0 30 75 6 4 EHCRC40400535A 4.0 0.5R 4.0 35 75 6 4 EHCRC40401013A 4.0 1.0R 4.0 13 50 6 4 d Tolerance EHCRC40401016A 4.0 1.0R 4.0 16 60 6 4 Ø 0 ~ 0.02 EHCRC40401020A 4.0 1.0R 4.0 20 60 6 4 EHCRC40401025A 4.0 1.0R 4.0 25 60 6 4 EHCRC40401030A 4.0 1.0R 4.0 30 75 6 4 EHCRC40401035A 4.0 1.0R 4.0 35 75 6 4 EHCRC40500116A 5.0 0.1R 5.0 16 60 6 4 A28
