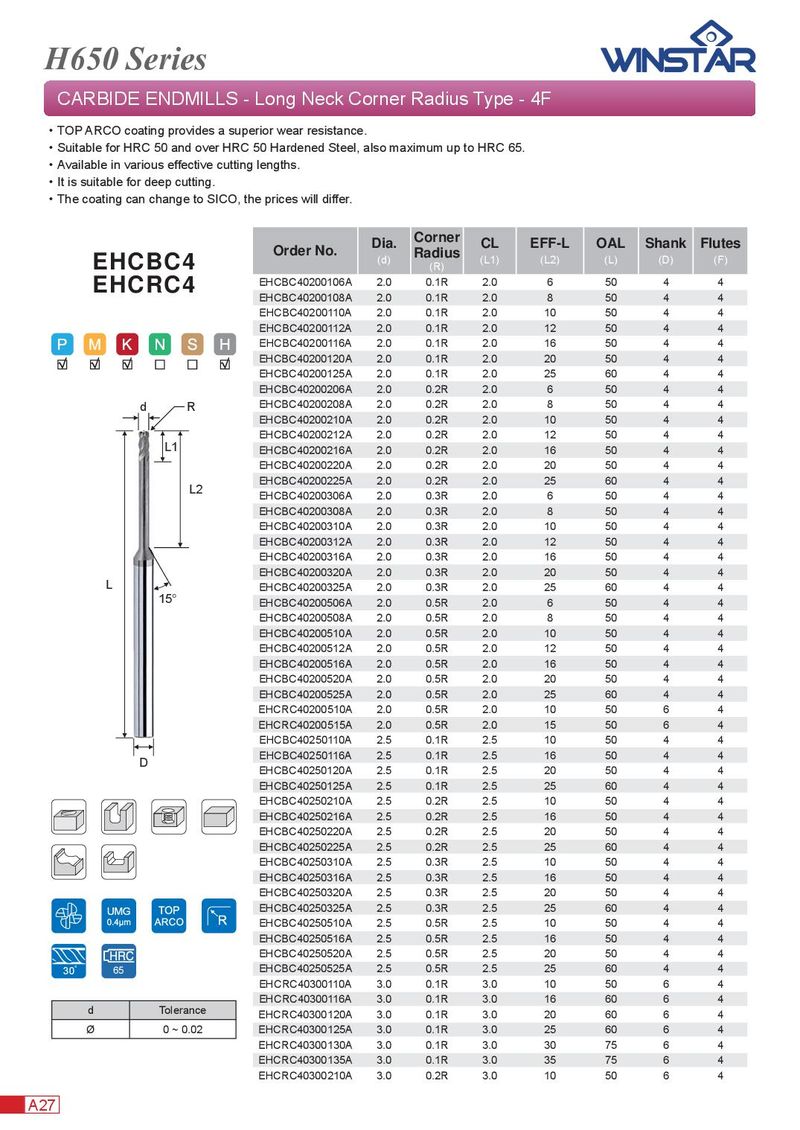

H650 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 4F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCBC40200106A 2.0 0.1R 2.0 6 50 4 4 EHCRC4 EHCBC40200108A 2.0 0.1R 2.0 8 50 4 4 EHCBC40200110A 2.0 0.1R 2.0 10 50 4 4 EHCBC40200112A 2.0 0.1R 2.0 12 50 4 4 EHCBC40200116A 2.0 0.1R 2.0 16 50 4 4 EHCBC40200120A 2.0 0.1R 2.0 20 50 4 4 EHCBC40200125A 2.0 0.1R 2.0 25 60 4 4 EHCBC40200206A 2.0 0.2R 2.0 6 50 4 4 d R EHCBC40200208A 2.0 0.2R 2.0 8 50 4 4 EHCBC40200210A 2.0 0.2R 2.0 10 50 4 4 EHCBC40200212A 2.0 0.2R 2.0 12 50 4 4 L1 EHCBC40200216A 2.0 0.2R 2.0 16 50 4 4 EHCBC40200220A 2.0 0.2R 2.0 20 50 4 4 EHCBC40200225A 2.0 0.2R 2.0 25 60 4 4 L2 EHCBC40200306A 2.0 0.3R 2.0 6 50 4 4 EHCBC40200308A 2.0 0.3R 2.0 8 50 4 4 EHCBC40200310A 2.0 0.3R 2.0 10 50 4 4 EHCBC40200312A 2.0 0.3R 2.0 12 50 4 4 EHCBC40200316A 2.0 0.3R 2.0 16 50 4 4 EHCBC40200320A 2.0 0.3R 2.0 20 50 4 4 L EHCBC40200325A 2.0 0.3R 2.0 25 60 4 4 15° EHCBC40200506A 2.0 0.5R 2.0 6 50 4 4 EHCBC40200508A 2.0 0.5R 2.0 8 50 4 4 EHCBC40200510A 2.0 0.5R 2.0 10 50 4 4 EHCBC40200512A 2.0 0.5R 2.0 12 50 4 4 EHCBC40200516A 2.0 0.5R 2.0 16 50 4 4 EHCBC40200520A 2.0 0.5R 2.0 20 50 4 4 EHCBC40200525A 2.0 0.5R 2.0 25 60 4 4 EHCRC40200510A 2.0 0.5R 2.0 10 50 6 4 EHCRC40200515A 2.0 0.5R 2.0 15 50 6 4 EHCBC40250110A 2.5 0.1R 2.5 10 50 4 4 EHCBC40250116A 2.5 0.1R 2.5 16 50 4 4 D EHCBC40250120A 2.5 0.1R 2.5 20 50 4 4 EHCBC40250125A 2.5 0.1R 2.5 25 60 4 4 EHCBC40250210A 2.5 0.2R 2.5 10 50 4 4 EHCBC40250216A 2.5 0.2R 2.5 16 50 4 4 EHCBC40250220A 2.5 0.2R 2.5 20 50 4 4 EHCBC40250225A 2.5 0.2R 2.5 25 60 4 4 EHCBC40250310A 2.5 0.3R 2.5 10 50 4 4 EHCBC40250316A 2.5 0.3R 2.5 16 50 4 4 EHCBC40250320A 2.5 0.3R 2.5 20 50 4 4 EHCBC40250325A 2.5 0.3R 2.5 25 60 4 4 EHCBC40250510A 2.5 0.5R 2.5 10 50 4 4 EHCBC40250516A 2.5 0.5R 2.5 16 50 4 4 EHCBC40250520A 2.5 0.5R 2.5 20 50 4 4 65 EHCBC40250525A 2.5 0.5R 2.5 25 60 4 4 EHCRC40300110A 3.0 0.1R 3.0 10 50 6 4 EHCRC40300116A 3.0 0.1R 3.0 16 60 6 4 d Tolerance EHCRC40300120A 3.0 0.1R 3.0 20 60 6 4 Ø 0 ~ 0.02 EHCRC40300125A 3.0 0.1R 3.0 25 60 6 4 EHCRC40300130A 3.0 0.1R 3.0 30 75 6 4 EHCRC40300135A 3.0 0.1R 3.0 35 75 6 4 EHCRC40300210A 3.0 0.2R 3.0 10 50 6 4 A27
