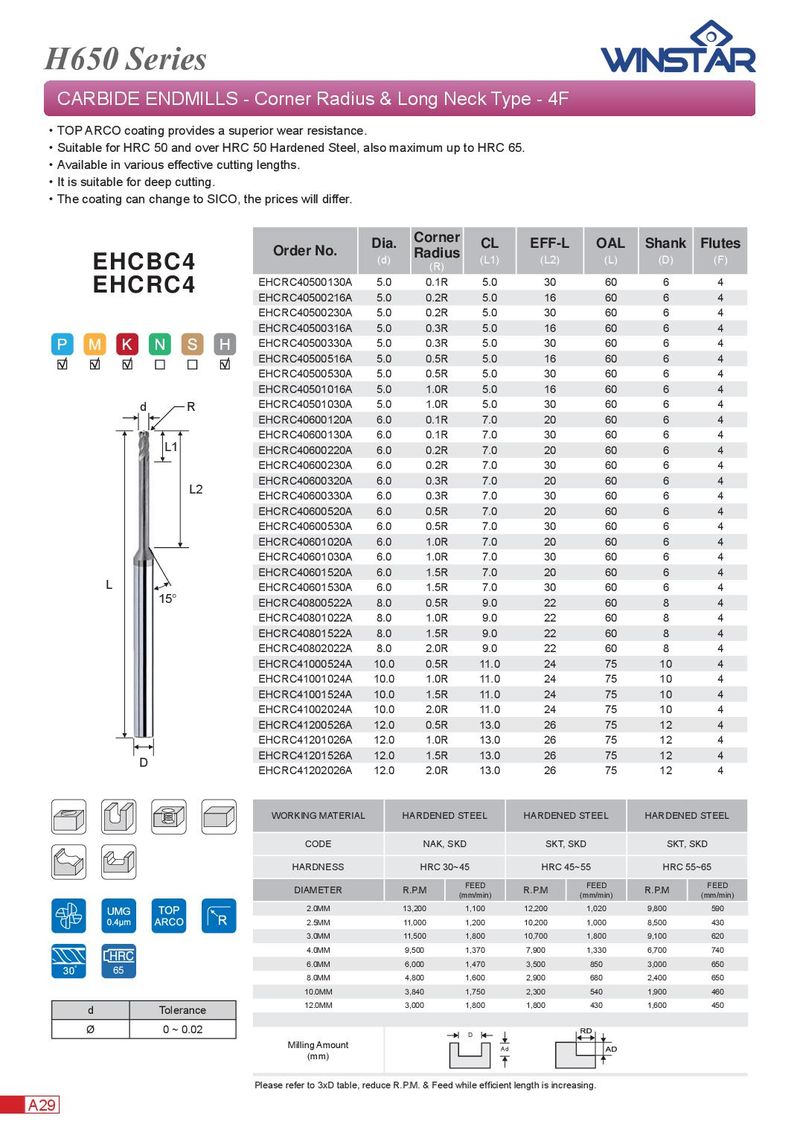

H650 Series CARBIDE ENDMILLS - Corner Radius & Long Neck Type - 4F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC40500130A 5.0 0.1R 5.0 30 60 6 4 EHCRC4 EHCRC40500216A 5.0 0.2R 5.0 16 60 6 4 EHCRC40500230A 5.0 0.2R 5.0 30 60 6 4 EHCRC40500316A 5.0 0.3R 5.0 16 60 6 4 EHCRC40500330A 5.0 0.3R 5.0 30 60 6 4 EHCRC40500516A 5.0 0.5R 5.0 16 60 6 4 EHCRC40500530A 5.0 0.5R 5.0 30 60 6 4 EHCRC40501016A 5.0 1.0R 5.0 16 60 6 4 d R EHCRC40501030A 5.0 1.0R 5.0 30 60 6 4 EHCRC40600120A 6.0 0.1R 7.0 20 60 6 4 EHCRC40600130A 6.0 0.1R 7.0 30 60 6 4 L1 EHCRC40600220A 6.0 0.2R 7.0 20 60 6 4 EHCRC40600230A 6.0 0.2R 7.0 30 60 6 4 EHCRC40600320A 6.0 0.3R 7.0 20 60 6 4 L2 EHCRC40600330A 6.0 0.3R 7.0 30 60 6 4 EHCRC40600520A 6.0 0.5R 7.0 20 60 6 4 EHCRC40600530A 6.0 0.5R 7.0 30 60 6 4 EHCRC40601020A 6.0 1.0R 7.0 20 60 6 4 EHCRC40601030A 6.0 1.0R 7.0 30 60 6 4 EHCRC40601520A 6.0 1.5R 7.0 20 60 6 4 L EHCRC40601530A 6.0 1.5R 7.0 30 60 6 4 15° EHCRC40800522A 8.0 0.5R 9.0 22 60 8 4 EHCRC40801022A 8.0 1.0R 9.0 22 60 8 4 EHCRC40801522A 8.0 1.5R 9.0 22 60 8 4 EHCRC40802022A 8.0 2.0R 9.0 22 60 8 4 EHCRC41000524A 10.0 0.5R 11.0 24 75 10 4 EHCRC41001024A 10.0 1.0R 11.0 24 75 10 4 EHCRC41001524A 10.0 1.5R 11.0 24 75 10 4 EHCRC41002024A 10.0 2.0R 11.0 24 75 10 4 EHCRC41200526A 12.0 0.5R 13.0 26 75 12 4 EHCRC41201026A 12.0 1.0R 13.0 26 75 12 4 EHCRC41201526A 12.0 1.5R 13.0 26 75 12 4 D EHCRC41202026A 12.0 2.0R 13.0 26 75 12 4 WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL CODE NAK, SKD SKT, SKD SKT, SKD HARDNESS HRC 30~45 HRC 45~55 HRC 55~65 FEED FEED FEED DIAMETER R.P.M (mm/min) R.P.M (mm/min) R.P.M (mm/min) 2.0MM 13,200 1,100 12,200 1,020 9,800 590 2.5MM 11,000 1,200 10,200 1,000 8,500 430 3.0MM 11,500 1,800 10,700 1,800 9,100 620 4.0MM 9,500 1,370 7,900 1,330 6,700 740 6.0MM 6,000 1,470 3,500 850 3,000 650 65 8.0MM 4,800 1,600 2,900 680 2,400 650 10.0MM 3,840 1,750 2,300 540 1,900 460 12.0MM 3,000 1,800 1,800 430 1,600 450 d Tolerance Ø 0 ~ 0.02 D Milling Amount Ad (mm) Please refer to 3xD table, reduce R.P.M. & Feed while effi cient length is increasing. A29
