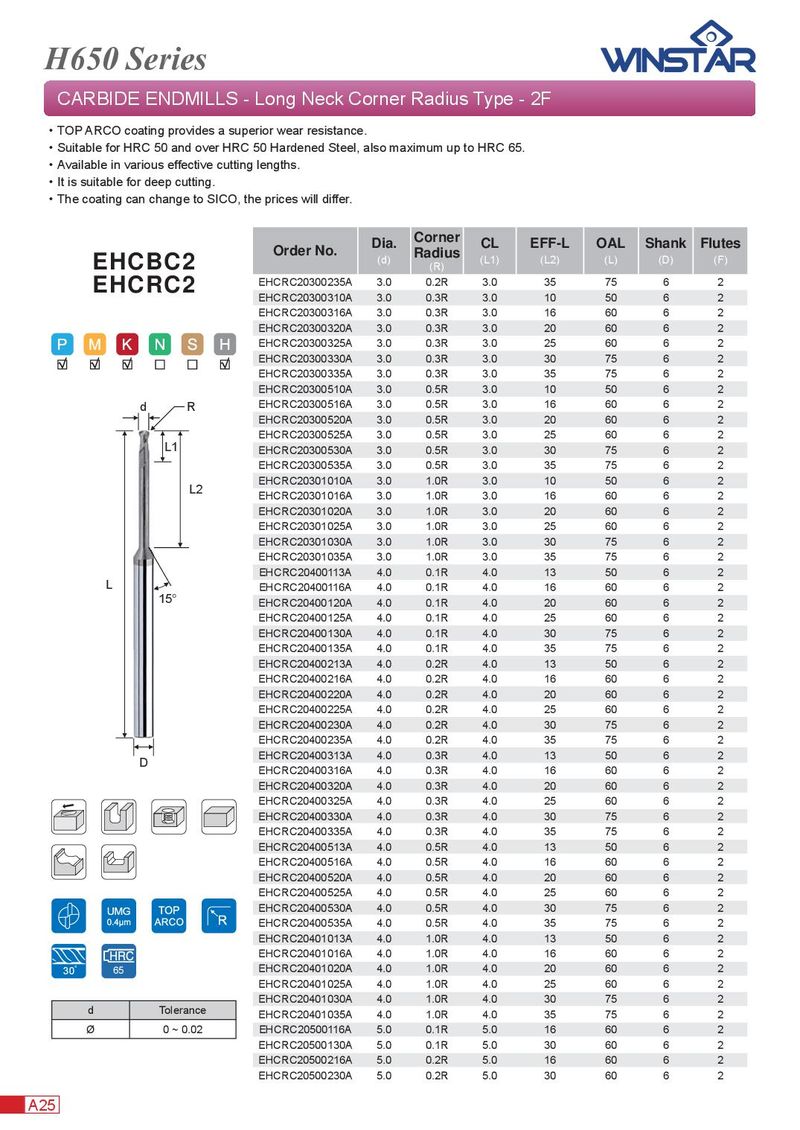

H650 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC20300235A 3.0 0.2R 3.0 35 75 6 2 EHCRC2 EHCRC20300310A 3.0 0.3R 3.0 10 50 6 2 EHCRC20300316A 3.0 0.3R 3.0 16 60 6 2 EHCRC20300320A 3.0 0.3R 3.0 20 60 6 2 EHCRC20300325A 3.0 0.3R 3.0 25 60 6 2 EHCRC20300330A 3.0 0.3R 3.0 30 75 6 2 EHCRC20300335A 3.0 0.3R 3.0 35 75 6 2 EHCRC20300510A 3.0 0.5R 3.0 10 50 6 2 d R EHCRC20300516A 3.0 0.5R 3.0 16 60 6 2 EHCRC20300520A 3.0 0.5R 3.0 20 60 6 2 EHCRC20300525A 3.0 0.5R 3.0 25 60 6 2 L1 EHCRC20300530A 3.0 0.5R 3.0 30 75 6 2 EHCRC20300535A 3.0 0.5R 3.0 35 75 6 2 EHCRC20301010A 3.0 1.0R 3.0 10 50 6 2 L2 EHCRC20301016A 3.0 1.0R 3.0 16 60 6 2 EHCRC20301020A 3.0 1.0R 3.0 20 60 6 2 EHCRC20301025A 3.0 1.0R 3.0 25 60 6 2 EHCRC20301030A 3.0 1.0R 3.0 30 75 6 2 EHCRC20301035A 3.0 1.0R 3.0 35 75 6 2 EHCRC20400113A 4.0 0.1R 4.0 13 50 6 2 L EHCRC20400116A 4.0 0.1R 4.0 16 60 6 2 15° EHCRC20400120A 4.0 0.1R 4.0 20 60 6 2 EHCRC20400125A 4.0 0.1R 4.0 25 60 6 2 EHCRC20400130A 4.0 0.1R 4.0 30 75 6 2 EHCRC20400135A 4.0 0.1R 4.0 35 75 6 2 EHCRC20400213A 4.0 0.2R 4.0 13 50 6 2 EHCRC20400216A 4.0 0.2R 4.0 16 60 6 2 EHCRC20400220A 4.0 0.2R 4.0 20 60 6 2 EHCRC20400225A 4.0 0.2R 4.0 25 60 6 2 EHCRC20400230A 4.0 0.2R 4.0 30 75 6 2 EHCRC20400235A 4.0 0.2R 4.0 35 75 6 2 EHCRC20400313A 4.0 0.3R 4.0 13 50 6 2 D EHCRC20400316A 4.0 0.3R 4.0 16 60 6 2 EHCRC20400320A 4.0 0.3R 4.0 20 60 6 2 EHCRC20400325A 4.0 0.3R 4.0 25 60 6 2 EHCRC20400330A 4.0 0.3R 4.0 30 75 6 2 EHCRC20400335A 4.0 0.3R 4.0 35 75 6 2 EHCRC20400513A 4.0 0.5R 4.0 13 50 6 2 EHCRC20400516A 4.0 0.5R 4.0 16 60 6 2 EHCRC20400520A 4.0 0.5R 4.0 20 60 6 2 EHCRC20400525A 4.0 0.5R 4.0 25 60 6 2 EHCRC20400530A 4.0 0.5R 4.0 30 75 6 2 EHCRC20400535A 4.0 0.5R 4.0 35 75 6 2 EHCRC20401013A 4.0 1.0R 4.0 13 50 6 2 EHCRC20401016A 4.0 1.0R 4.0 16 60 6 2 65 EHCRC20401020A 4.0 1.0R 4.0 20 60 6 2 EHCRC20401025A 4.0 1.0R 4.0 25 60 6 2 EHCRC20401030A 4.0 1.0R 4.0 30 75 6 2 d Tolerance EHCRC20401035A 4.0 1.0R 4.0 35 75 6 2 Ø 0 ~ 0.02 EHCRC20500116A 5.0 0.1R 5.0 16 60 6 2 EHCRC20500130A 5.0 0.1R 5.0 30 60 6 2 EHCRC20500216A 5.0 0.2R 5.0 16 60 6 2 EHCRC20500230A 5.0 0.2R 5.0 30 60 6 2 A25
