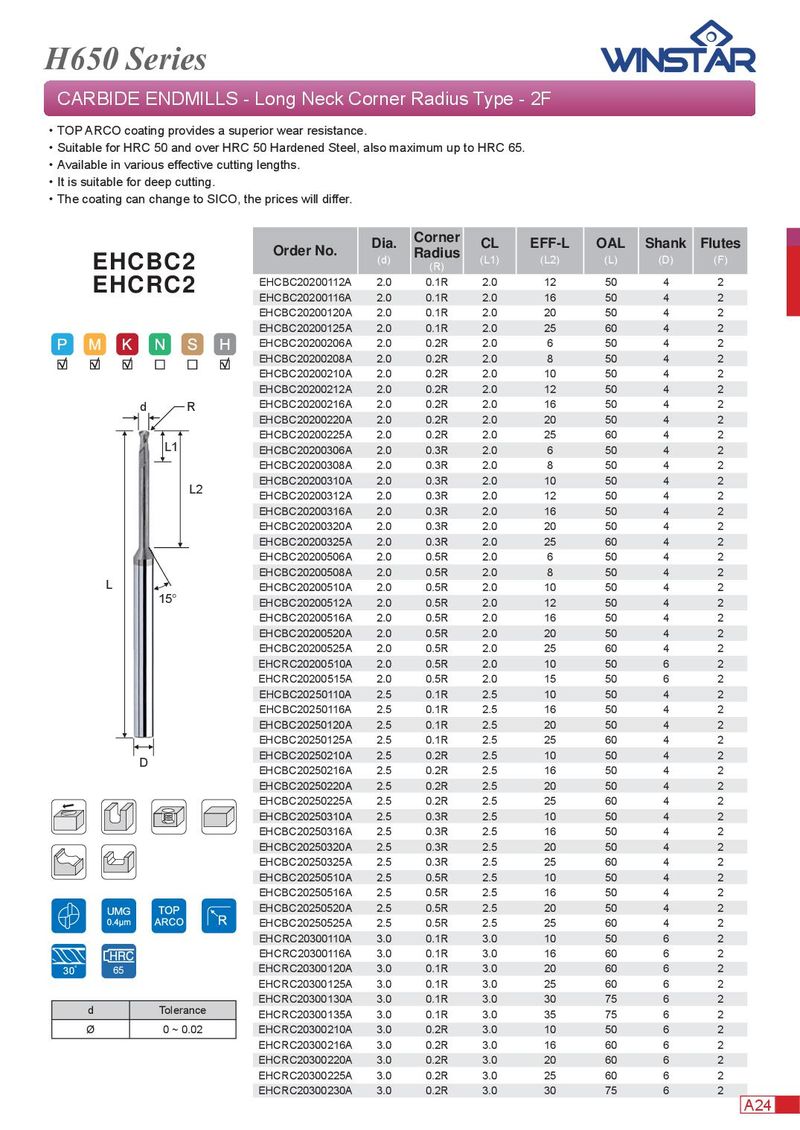

H650 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCBC20200112A 2.0 0.1R 2.0 12 50 4 2 EHCRC2 EHCBC20200116A 2.0 0.1R 2.0 16 50 4 2 EHCBC20200120A 2.0 0.1R 2.0 20 50 4 2 EHCBC20200125A 2.0 0.1R 2.0 25 60 4 2 EHCBC20200206A 2.0 0.2R 2.0 6 50 4 2 EHCBC20200208A 2.0 0.2R 2.0 8 50 4 2 EHCBC20200210A 2.0 0.2R 2.0 10 50 4 2 EHCBC20200212A 2.0 0.2R 2.0 12 50 4 2 d R EHCBC20200216A 2.0 0.2R 2.0 16 50 4 2 EHCBC20200220A 2.0 0.2R 2.0 20 50 4 2 EHCBC20200225A 2.0 0.2R 2.0 25 60 4 2 L1 EHCBC20200306A 2.0 0.3R 2.0 6 50 4 2 EHCBC20200308A 2.0 0.3R 2.0 8 50 4 2 EHCBC20200310A 2.0 0.3R 2.0 10 50 4 2 L2 EHCBC20200312A 2.0 0.3R 2.0 12 50 4 2 EHCBC20200316A 2.0 0.3R 2.0 16 50 4 2 EHCBC20200320A 2.0 0.3R 2.0 20 50 4 2 EHCBC20200325A 2.0 0.3R 2.0 25 60 4 2 EHCBC20200506A 2.0 0.5R 2.0 6 50 4 2 EHCBC20200508A 2.0 0.5R 2.0 8 50 4 2 L EHCBC20200510A 2.0 0.5R 2.0 10 50 4 2 15° EHCBC20200512A 2.0 0.5R 2.0 12 50 4 2 EHCBC20200516A 2.0 0.5R 2.0 16 50 4 2 EHCBC20200520A 2.0 0.5R 2.0 20 50 4 2 EHCBC20200525A 2.0 0.5R 2.0 25 60 4 2 EHCRC20200510A 2.0 0.5R 2.0 10 50 6 2 EHCRC20200515A 2.0 0.5R 2.0 15 50 6 2 EHCBC20250110A 2.5 0.1R 2.5 10 50 4 2 EHCBC20250116A 2.5 0.1R 2.5 16 50 4 2 EHCBC20250120A 2.5 0.1R 2.5 20 50 4 2 EHCBC20250125A 2.5 0.1R 2.5 25 60 4 2 EHCBC20250210A 2.5 0.2R 2.5 10 50 4 2 D EHCBC20250216A 2.5 0.2R 2.5 16 50 4 2 EHCBC20250220A 2.5 0.2R 2.5 20 50 4 2 EHCBC20250225A 2.5 0.2R 2.5 25 60 4 2 EHCBC20250310A 2.5 0.3R 2.5 10 50 4 2 EHCBC20250316A 2.5 0.3R 2.5 16 50 4 2 EHCBC20250320A 2.5 0.3R 2.5 20 50 4 2 EHCBC20250325A 2.5 0.3R 2.5 25 60 4 2 EHCBC20250510A 2.5 0.5R 2.5 10 50 4 2 EHCBC20250516A 2.5 0.5R 2.5 16 50 4 2 EHCBC20250520A 2.5 0.5R 2.5 20 50 4 2 EHCBC20250525A 2.5 0.5R 2.5 25 60 4 2 EHCRC20300110A 3.0 0.1R 3.0 10 50 6 2 EHCRC20300116A 3.0 0.1R 3.0 16 60 6 2 65 EHCRC20300120A 3.0 0.1R 3.0 20 60 6 2 EHCRC20300125A 3.0 0.1R 3.0 25 60 6 2 EHCRC20300130A 3.0 0.1R 3.0 30 75 6 2 d Tolerance EHCRC20300135A 3.0 0.1R 3.0 35 75 6 2 Ø 0 ~ 0.02 EHCRC20300210A 3.0 0.2R 3.0 10 50 6 2 EHCRC20300216A 3.0 0.2R 3.0 16 60 6 2 EHCRC20300220A 3.0 0.2R 3.0 20 60 6 2 EHCRC20300225A 3.0 0.2R 3.0 25 60 6 2 EHCRC20300230A 3.0 0.2R 3.0 30 75 6 2 A24
