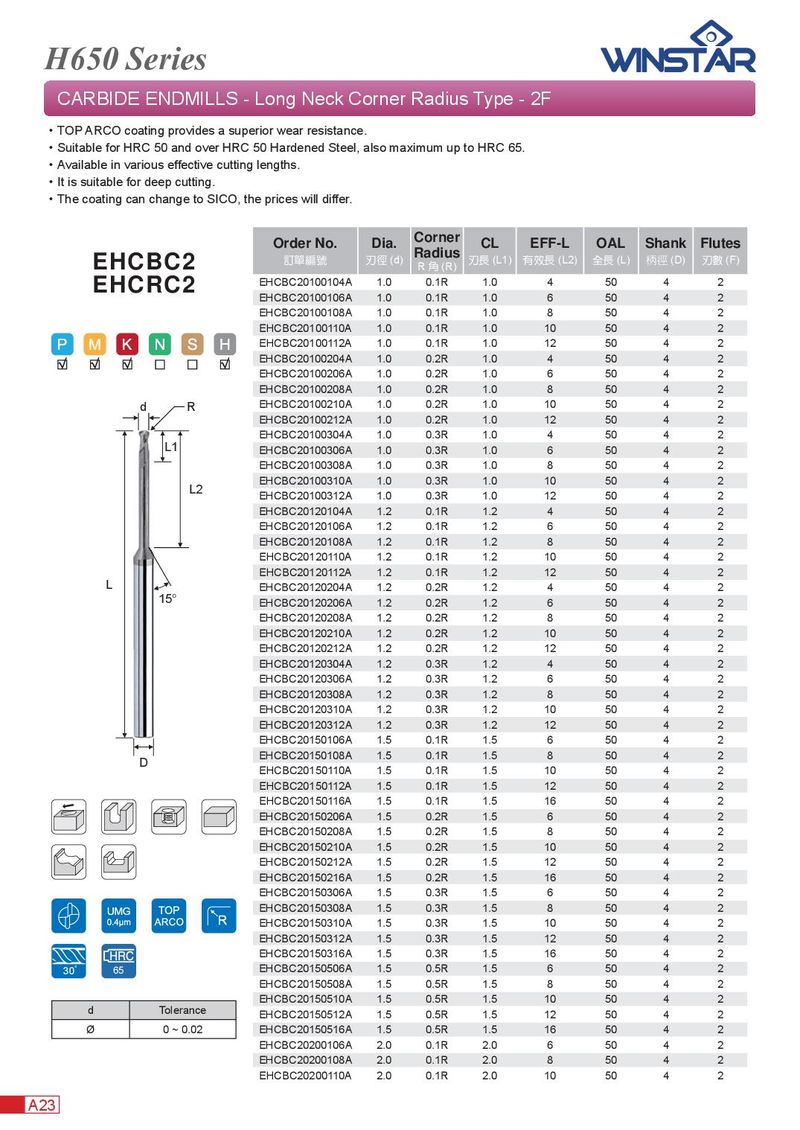

H650 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Order No. Dia. CL EFF-L OAL Shank Flutes Radius 訂單編號 刃徑 (d) 刃長 (L1) 有效長 (L2) 全長 (L) ߠश (D) 刃數 (F) EHCBC2 R 角 (R) EHCBC20100104A 1.0 0.1R 1.0 4 50 4 2 EHCRC2 EHCBC20100106A 1.0 0.1R 1.0 6 50 4 2 EHCBC20100108A 1.0 0.1R 1.0 8 50 4 2 EHCBC20100110A 1.0 0.1R 1.0 10 50 4 2 EHCBC20100112A 1.0 0.1R 1.0 12 50 4 2 EHCBC20100204A 1.0 0.2R 1.0 4 50 4 2 EHCBC20100206A 1.0 0.2R 1.0 6 50 4 2 EHCBC20100208A 1.0 0.2R 1.0 8 50 4 2 d R EHCBC20100210A 1.0 0.2R 1.0 10 50 4 2 EHCBC20100212A 1.0 0.2R 1.0 12 50 4 2 EHCBC20100304A 1.0 0.3R 1.0 4 50 4 2 L1 EHCBC20100306A 1.0 0.3R 1.0 6 50 4 2 EHCBC20100308A 1.0 0.3R 1.0 8 50 4 2 EHCBC20100310A 1.0 0.3R 1.0 10 50 4 2 L2 EHCBC20100312A 1.0 0.3R 1.0 12 50 4 2 EHCBC20120104A 1.2 0.1R 1.2 4 50 4 2 EHCBC20120106A 1.2 0.1R 1.2 6 50 4 2 EHCBC20120108A 1.2 0.1R 1.2 8 50 4 2 EHCBC20120110A 1.2 0.1R 1.2 10 50 4 2 EHCBC20120112A 1.2 0.1R 1.2 12 50 4 2 L EHCBC20120204A 1.2 0.2R 1.2 4 50 4 2 15° EHCBC20120206A 1.2 0.2R 1.2 6 50 4 2 EHCBC20120208A 1.2 0.2R 1.2 8 50 4 2 EHCBC20120210A 1.2 0.2R 1.2 10 50 4 2 EHCBC20120212A 1.2 0.2R 1.2 12 50 4 2 EHCBC20120304A 1.2 0.3R 1.2 4 50 4 2 EHCBC20120306A 1.2 0.3R 1.2 6 50 4 2 EHCBC20120308A 1.2 0.3R 1.2 8 50 4 2 EHCBC20120310A 1.2 0.3R 1.2 10 50 4 2 EHCBC20120312A 1.2 0.3R 1.2 12 50 4 2 EHCBC20150106A 1.5 0.1R 1.5 6 50 4 2 EHCBC20150108A 1.5 0.1R 1.5 8 50 4 2 D EHCBC20150110A 1.5 0.1R 1.5 10 50 4 2 EHCBC20150112A 1.5 0.1R 1.5 12 50 4 2 EHCBC20150116A 1.5 0.1R 1.5 16 50 4 2 EHCBC20150206A 1.5 0.2R 1.5 6 50 4 2 EHCBC20150208A 1.5 0.2R 1.5 8 50 4 2 EHCBC20150210A 1.5 0.2R 1.5 10 50 4 2 EHCBC20150212A 1.5 0.2R 1.5 12 50 4 2 EHCBC20150216A 1.5 0.2R 1.5 16 50 4 2 EHCBC20150306A 1.5 0.3R 1.5 6 50 4 2 EHCBC20150308A 1.5 0.3R 1.5 8 50 4 2 EHCBC20150310A 1.5 0.3R 1.5 10 50 4 2 EHCBC20150312A 1.5 0.3R 1.5 12 50 4 2 EHCBC20150316A 1.5 0.3R 1.5 16 50 4 2 65 EHCBC20150506A 1.5 0.5R 1.5 6 50 4 2 EHCBC20150508A 1.5 0.5R 1.5 8 50 4 2 EHCBC20150510A 1.5 0.5R 1.5 10 50 4 2 d Tolerance EHCBC20150512A 1.5 0.5R 1.5 12 50 4 2 Ø 0 ~ 0.02 EHCBC20150516A 1.5 0.5R 1.5 16 50 4 2 EHCBC20200106A 2.0 0.1R 2.0 6 50 4 2 EHCBC20200108A 2.0 0.1R 2.0 8 50 4 2 EHCBC20200110A 2.0 0.1R 2.0 10 50 4 2 A23
