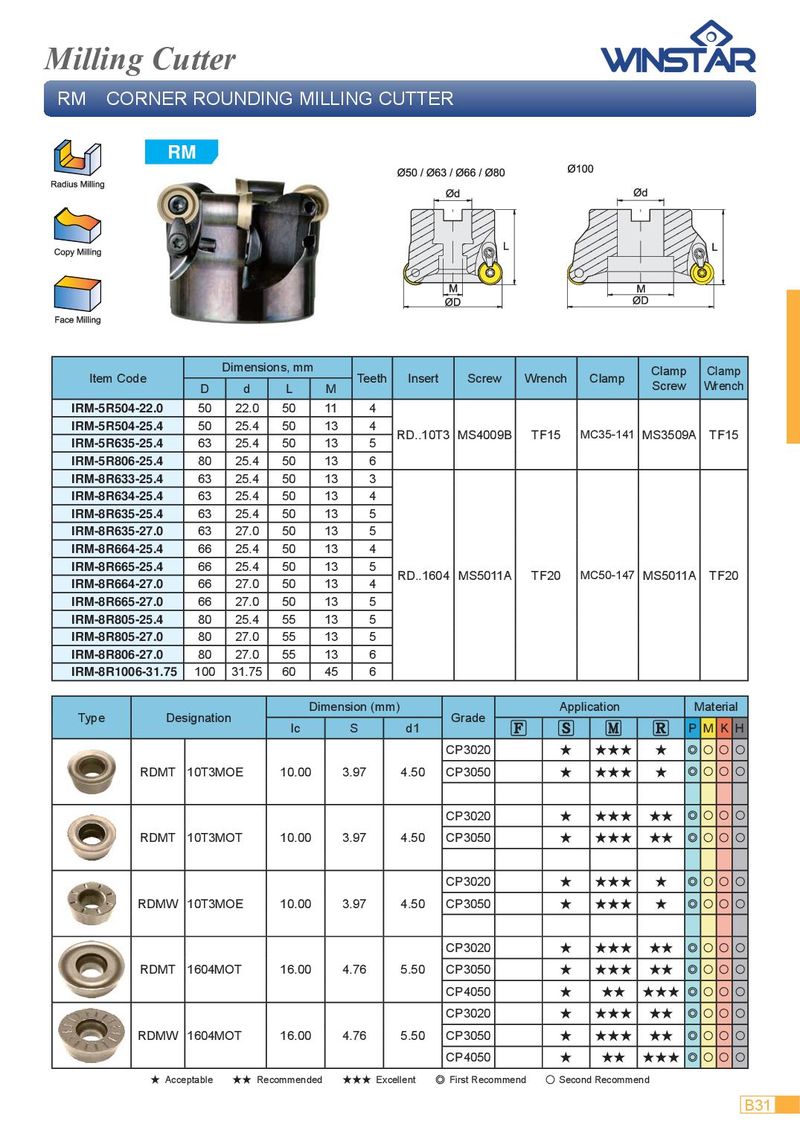

Milling Cutter RM CORNER ROUNDING MILLING CUTTER RM Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L M Screw Wrench IRM-5R504-22.0 50 22.0 50 11 4 IRM-5R504-25.4 50 25.4 50 13 4 RD..10T3 MS4009B TF15 MC35-141 MS3509A TF15 IRM-5R635-25.4 63 25.4 50 13 5 IRM-5R806-25.4 80 25.4 50 13 6 IRM-8R633-25.4 63 25.4 50 13 3 IRM-8R634-25.4 63 25.4 50 13 4 IRM-8R635-25.4 63 25.4 50 13 5 IRM-8R635-27.0 63 27.0 50 13 5 IRM-8R664-25.4 66 25.4 50 13 4 IRM-8R665-25.4 66 25.4 50 13 5 RD..1604 MS5011A TF20 MC50-147 MS5011A TF20 IRM-8R664-27.0 66 27.0 50 13 4 IRM-8R665-27.0 66 27.0 50 13 5 IRM-8R805-25.4 80 25.4 55 13 5 IRM-8R805-27.0 80 27.0 55 13 5 IRM-8R806-27.0 80 27.0 55 13 6 IRM-8R1006-31.75 100 31.75 60 45 6 Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMT 10T3MOE 10.00 3.97 4.50 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RDMT 10T3MOT 10.00 3.97 4.50 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMW 10T3MOE 10.00 3.97 4.50 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RDMT 1604MOT 16.00 4.76 5.50 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP4050 ★ ★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RDMW 1604MOT 16.00 4.76 5.50 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP4050 ★ ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B31
