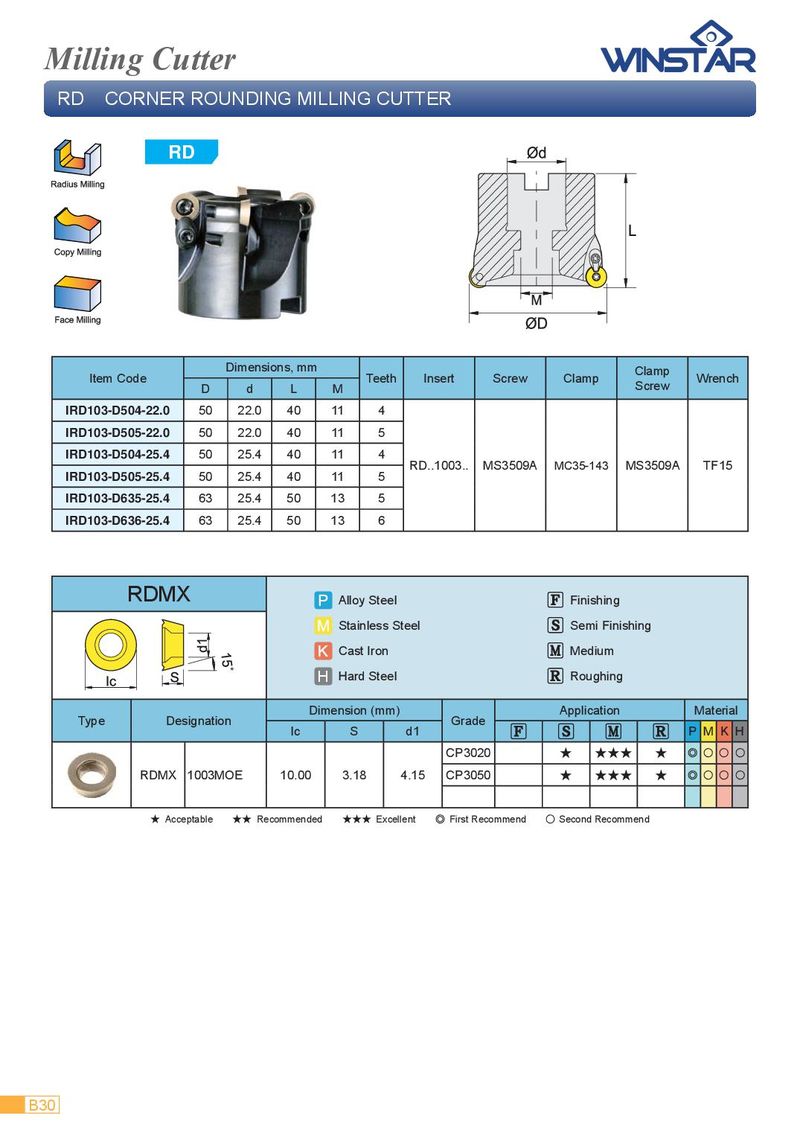

Milling Cutter RD CORNER ROUNDING MILLING CUTTER RD Dimensions, mm Clamp Item Code Teeth Insert Screw Clamp Wrench D d L M Screw IRD103-D504-22.0 50 22.0 40 11 4 IRD103-D505-22.0 50 22.0 40 11 5 IRD103-D504-25.4 50 25.4 40 11 4 RD..1003.. MS3509A MC35-143 MS3509A TF15 IRD103-D505-25.4 50 25.4 40 11 5 IRD103-D635-25.4 63 25.4 50 13 5 IRD103-D636-25.4 63 25.4 50 13 6 RDMX Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMX 1003MOE 10.00 3.18 4.15 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B30
