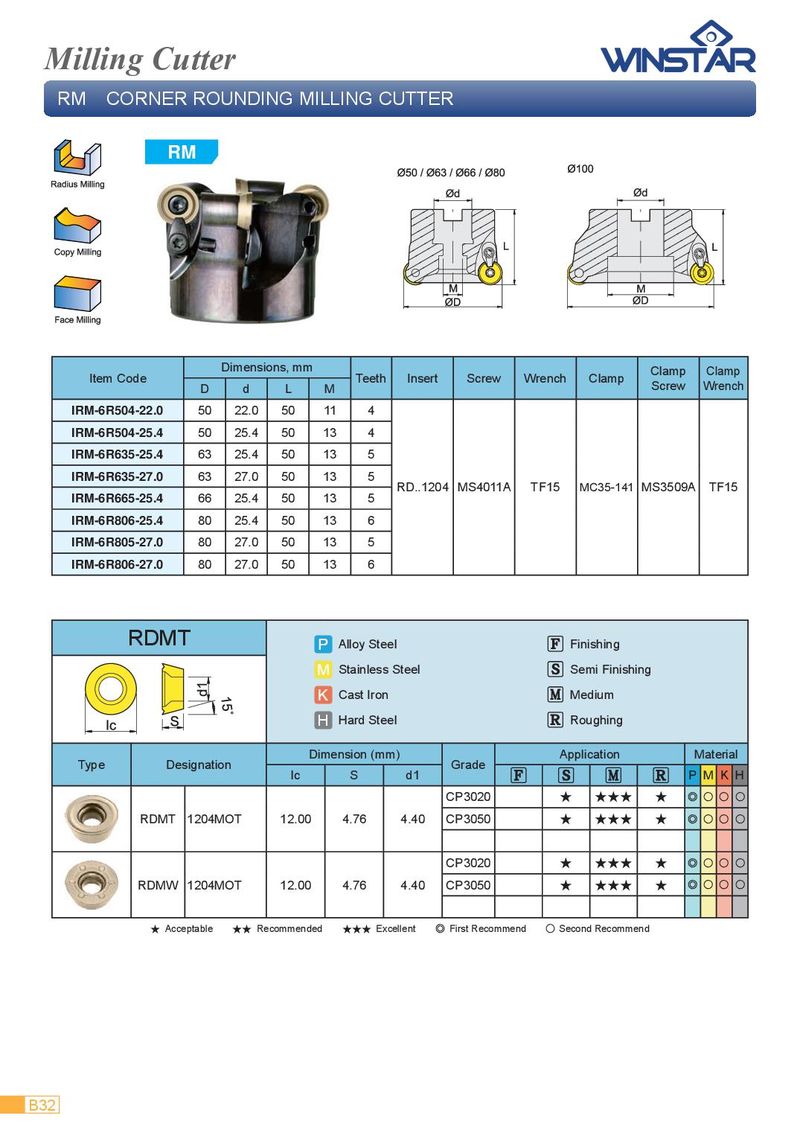

Milling Cutter RM CORNER ROUNDING MILLING CUTTER RM Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L M Screw Wrench IRM-6R504-22.0 50 22.0 50 11 4 IRM-6R504-25.4 50 25.4 50 13 4 IRM-6R635-25.4 63 25.4 50 13 5 IRM-6R635-27.0 63 27.0 50 13 5 RD..1204 MS4011A TF15 MC35-141 MS3509A TF15 IRM-6R665-25.4 66 25.4 50 13 5 IRM-6R806-25.4 80 25.4 50 13 6 IRM-6R805-27.0 80 27.0 50 13 5 IRM-6R806-27.0 80 27.0 50 13 6 RDMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMT 1204MOT 12.00 4.76 4.40 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMW 1204MOT 12.00 4.76 4.40 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B32
