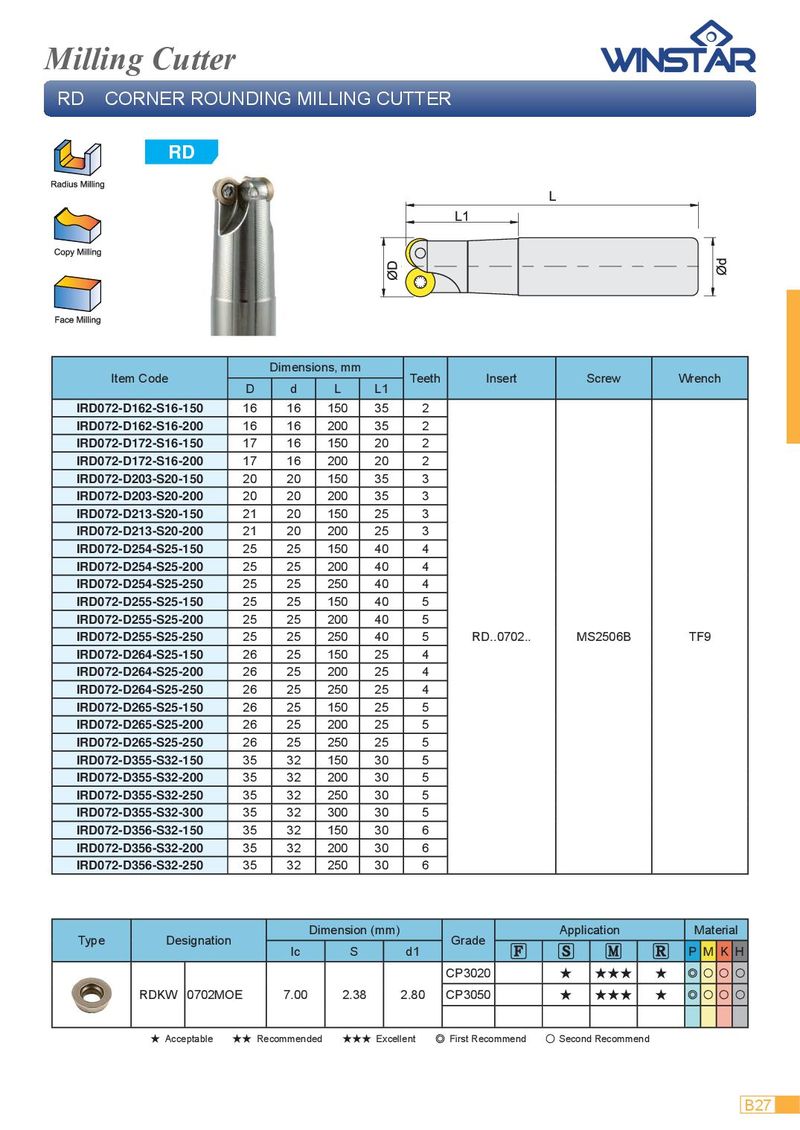

Milling Cutter RD CORNER ROUNDING MILLING CUTTER RD Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IRD072-D162-S16-150 16 16 150 35 2 IRD072-D162-S16-200 16 16 200 35 2 IRD072-D172-S16-150 17 16 150 20 2 IRD072-D172-S16-200 17 16 200 20 2 IRD072-D203-S20-150 20 20 150 35 3 IRD072-D203-S20-200 20 20 200 35 3 IRD072-D213-S20-150 21 20 150 25 3 IRD072-D213-S20-200 21 20 200 25 3 IRD072-D254-S25-150 25 25 150 40 4 IRD072-D254-S25-200 25 25 200 40 4 IRD072-D254-S25-250 25 25 250 40 4 IRD072-D255-S25-150 25 25 150 40 5 IRD072-D255-S25-200 25 25 200 40 5 IRD072-D255-S25-250 25 25 250 40 5 RD..0702.. MS2506B TF9 IRD072-D264-S25-150 26 25 150 25 4 IRD072-D264-S25-200 26 25 200 25 4 IRD072-D264-S25-250 26 25 250 25 4 IRD072-D265-S25-150 26 25 150 25 5 IRD072-D265-S25-200 26 25 200 25 5 IRD072-D265-S25-250 26 25 250 25 5 IRD072-D355-S32-150 35 32 150 30 5 IRD072-D355-S32-200 35 32 200 30 5 IRD072-D355-S32-250 35 32 250 30 5 IRD072-D355-S32-300 35 32 300 30 5 IRD072-D356-S32-150 35 32 150 30 6 IRD072-D356-S32-200 35 32 200 30 6 IRD072-D356-S32-250 35 32 250 30 6 Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDKW 0702MOE 7.00 2.38 2.80 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B27
