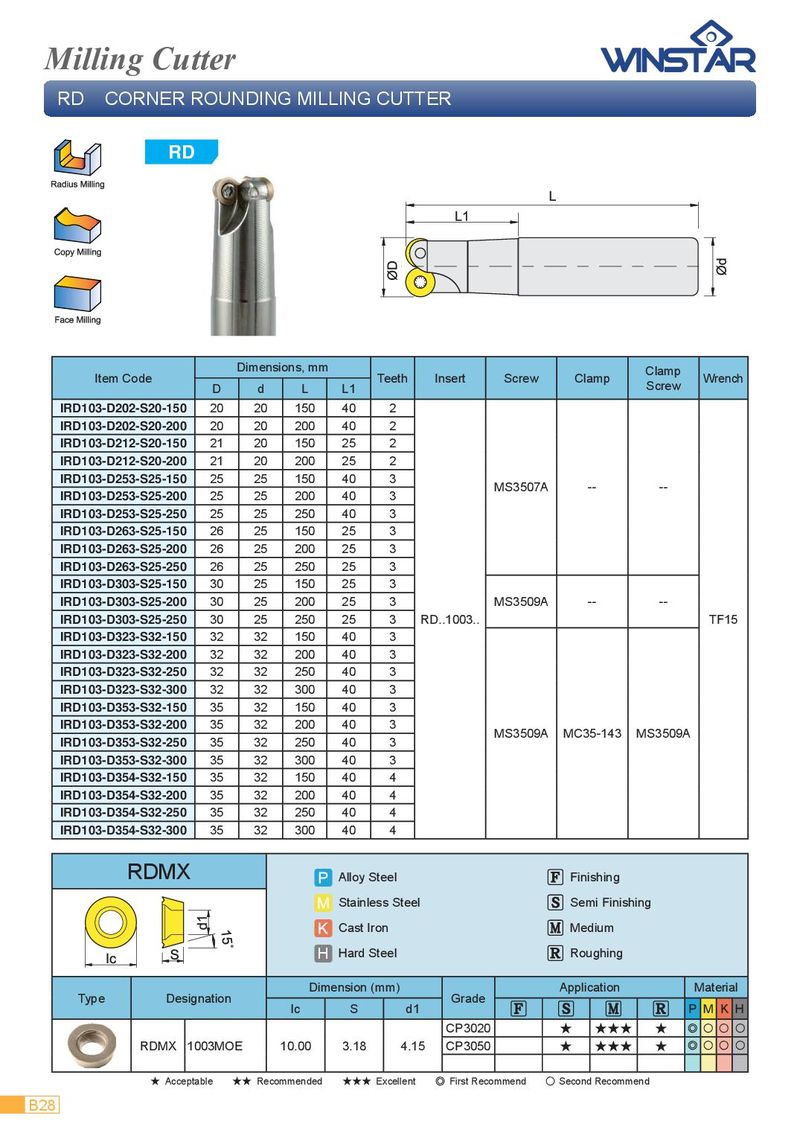

Milling Cutter RD CORNER ROUNDING MILLING CUTTER RD Dimensions, mm Clamp Item Code Teeth Insert Screw Clamp Wrench D d L L1 Screw IRD103-D202-S20-150 20 20 150 40 2 IRD103-D202-S20-200 20 20 200 40 2 IRD103-D212-S20-150 21 20 150 25 2 IRD103-D212-S20-200 21 20 200 25 2 IRD103-D253-S25-150 25 25 150 40 3 MS3507A -- -- IRD103-D253-S25-200 25 25 200 40 3 IRD103-D253-S25-250 25 25 250 40 3 IRD103-D263-S25-150 26 25 150 25 3 IRD103-D263-S25-200 26 25 200 25 3 IRD103-D263-S25-250 26 25 250 25 3 IRD103-D303-S25-150 30 25 150 25 3 IRD103-D303-S25-200 30 25 200 25 3 MS3509A -- -- IRD103-D303-S25-250 30 25 250 25 3 RD..1003.. TF15 IRD103-D323-S32-150 32 32 150 40 3 IRD103-D323-S32-200 32 32 200 40 3 IRD103-D323-S32-250 32 32 250 40 3 IRD103-D323-S32-300 32 32 300 40 3 IRD103-D353-S32-150 35 32 150 40 3 IRD103-D353-S32-200 35 32 200 40 3 MS3509A MC35-143 MS3509A IRD103-D353-S32-250 35 32 250 40 3 IRD103-D353-S32-300 35 32 300 40 3 IRD103-D354-S32-150 35 32 150 40 4 IRD103-D354-S32-200 35 32 200 40 4 IRD103-D354-S32-250 35 32 250 40 4 IRD103-D354-S32-300 35 32 300 40 4 RDMX Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMX 1003MOE 10.00 3.18 4.15 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B28
