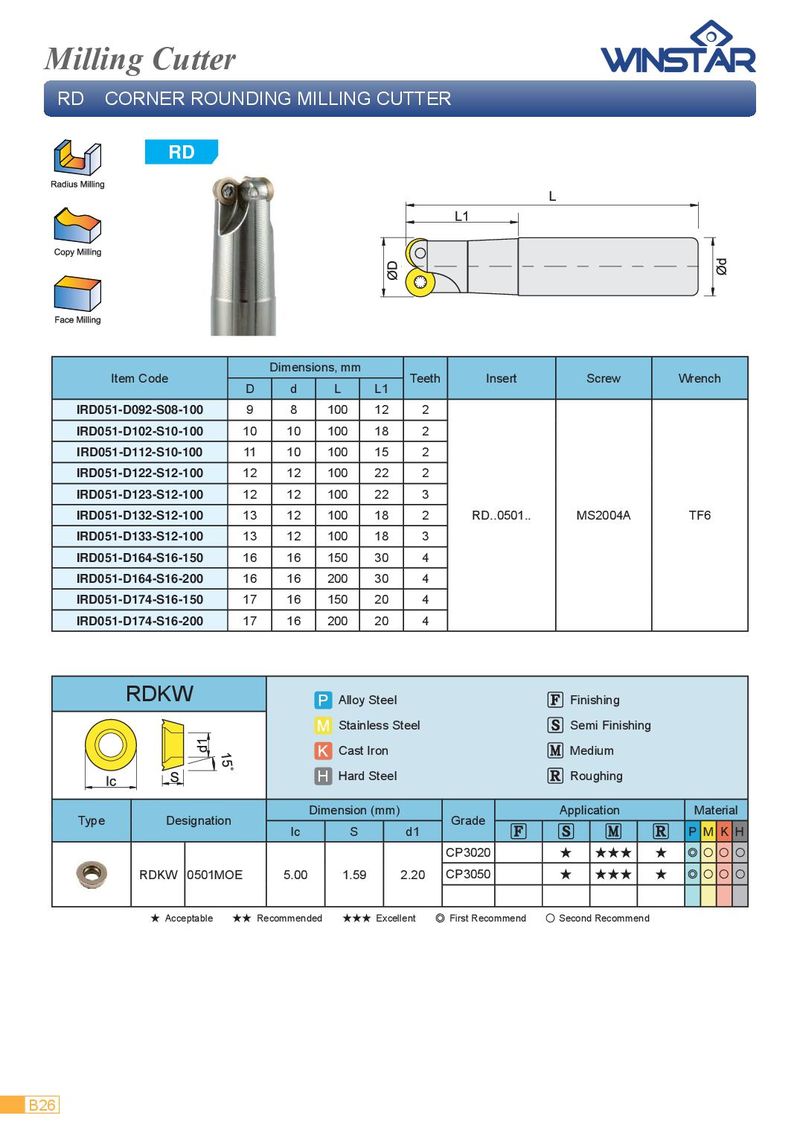

Milling Cutter RD CORNER ROUNDING MILLING CUTTER RD Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IRD051-D092-S08-100 9 8 100 12 2 IRD051-D102-S10-100 10 10 100 18 2 IRD051-D112-S10-100 11 10 100 15 2 IRD051-D122-S12-100 12 12 100 22 2 IRD051-D123-S12-100 12 12 100 22 3 IRD051-D132-S12-100 13 12 100 18 2 RD..0501.. MS2004A TF6 IRD051-D133-S12-100 13 12 100 18 3 IRD051-D164-S16-150 16 16 150 30 4 IRD051-D164-S16-200 16 16 200 30 4 IRD051-D174-S16-150 17 16 150 20 4 IRD051-D174-S16-200 17 16 200 20 4 RDKW Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDKW 0501MOE 5.00 1.59 2.20 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B26
