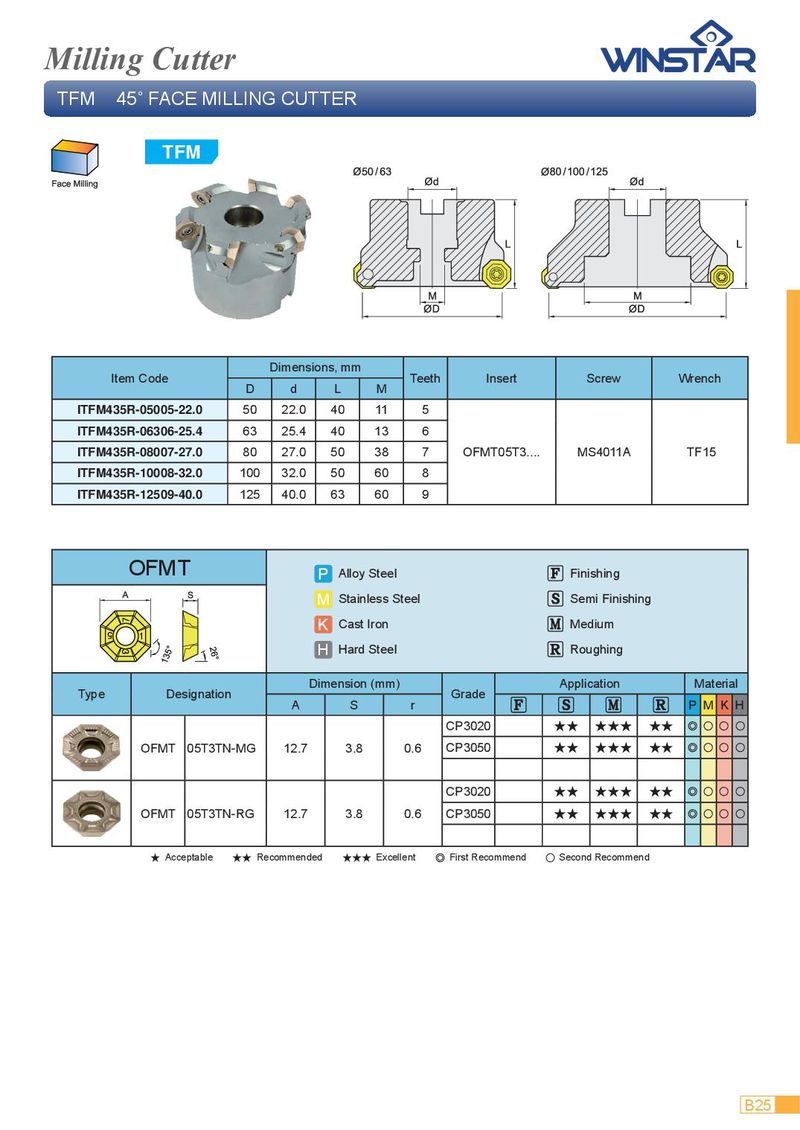

Milling Cutter TFM 45˚ FACE MILLING CUTTER TFM Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M ITFM435R-05005-22.0 50 22.0 40 11 5 ITFM435R-06306-25.4 63 25.4 40 13 6 ITFM435R-08007-27.0 80 27.0 50 38 7 OFMT05T3.... MS4011A TF15 ITFM435R-10008-32.0 100 32.0 50 60 8 ITFM435R-12509-40.0 125 40.0 63 60 9 OFMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A S r P M K H CP3020 ★★ ★★★ ★★ ◎ ○ ○ ○ OFMT 05T3TN-MG 12.7 3.8 0.6 CP3050 ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ★★ ◎ ○ ○ ○ OFMT 05T3TN-RG 12.7 3.8 0.6 CP3050 ★★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B25
