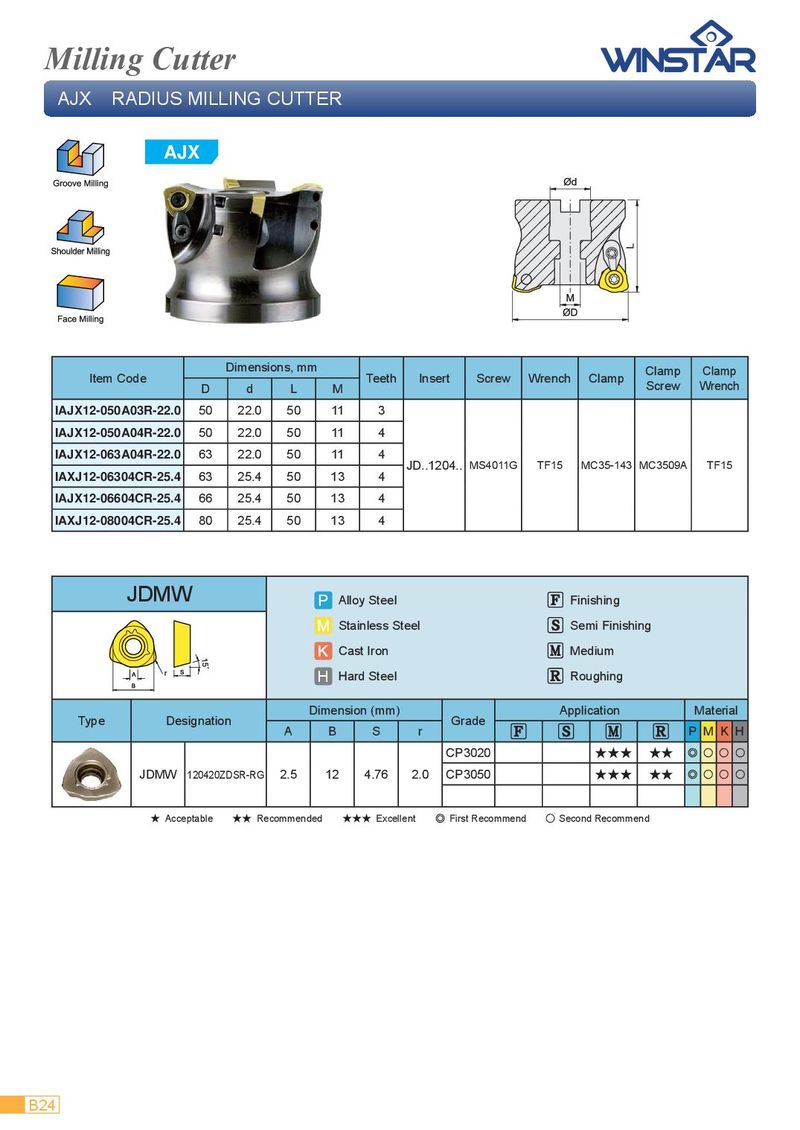

Milling Cutter AJX RADIUS MILLING CUTTER AJX Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L M Screw Wrench IAJX12-050A03R-22.0 50 22.0 50 11 3 IAJX12-050A04R-22.0 50 22.0 50 11 4 IAJX12-063A04R-22.0 63 22.0 50 11 4 JD..1204.. MS4011G TF15 MC35-143 MC3509A TF15 IAXJ12-06304CR-25.4 63 25.4 50 13 4 IAJX12-06604CR-25.4 66 25.4 50 13 4 IAXJ12-08004CR-25.4 80 25.4 50 13 4 JDMW Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r P M K H CP3020 ★★★ ★★ ◎ ○ ○ ○ JDMW 120420ZDSR-RG 2.5 12 4.76 2.0 CP3050 ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B24
