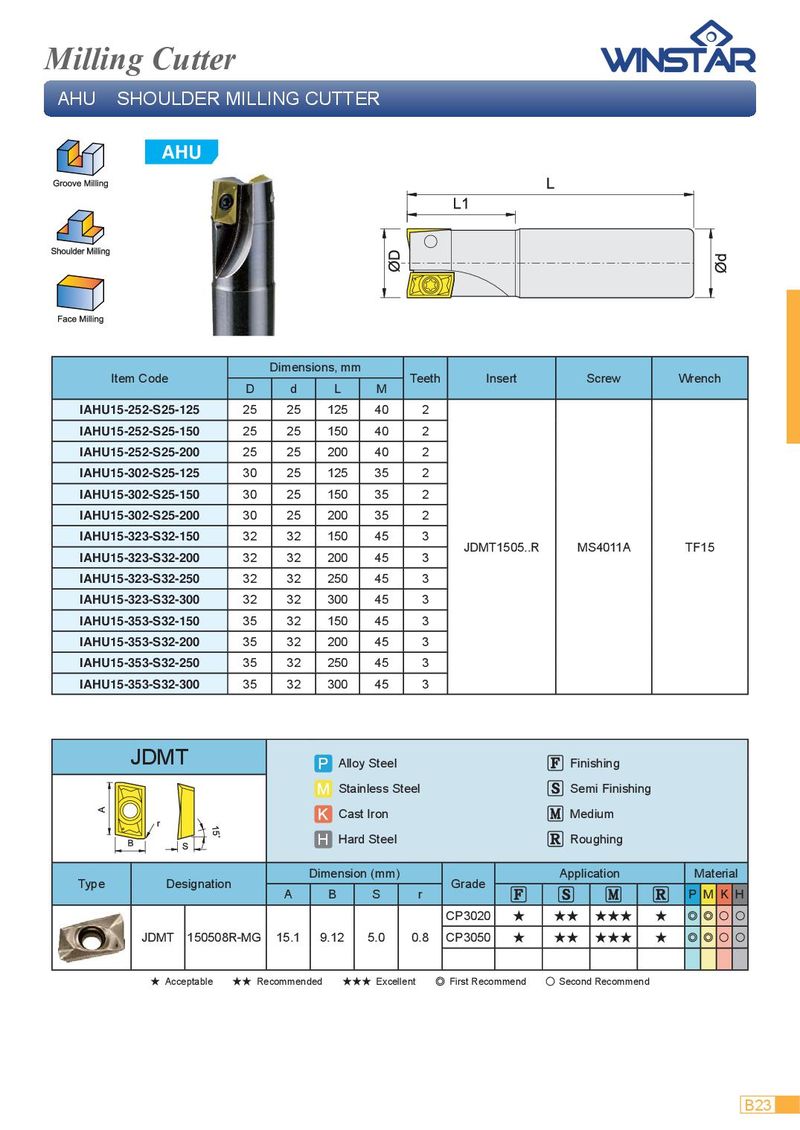

Milling Cutter AHU SHOULDER MILLING CUTTER AHU Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IAHU15-252-S25-125 25 25 125 40 2 IAHU15-252-S25-150 25 25 150 40 2 IAHU15-252-S25-200 25 25 200 40 2 IAHU15-302-S25-125 30 25 125 35 2 IAHU15-302-S25-150 30 25 150 35 2 IAHU15-302-S25-200 30 25 200 35 2 IAHU15-323-S32-150 32 32 150 45 3 JDMT1505..R MS4011A TF15 IAHU15-323-S32-200 32 32 200 45 3 IAHU15-323-S32-250 32 32 250 45 3 IAHU15-323-S32-300 32 32 300 45 3 IAHU15-353-S32-150 35 32 150 45 3 IAHU15-353-S32-200 35 32 200 45 3 IAHU15-353-S32-250 35 32 250 45 3 IAHU15-353-S32-300 35 32 300 45 3 JDMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ JDMT 150508R-MG 15.1 9.12 5.0 0.8 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B23
