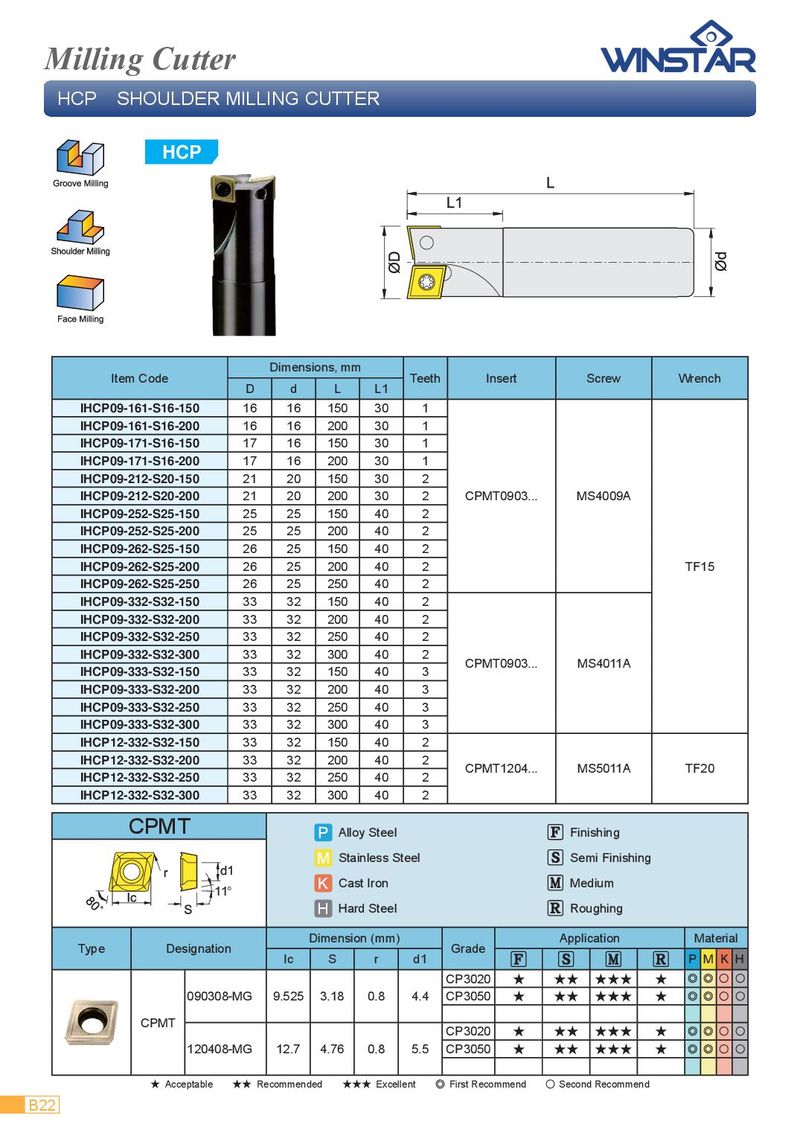

Milling Cutter HCP SHOULDER MILLING CUTTER HCP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IHCP09-161-S16-150 16 16 150 30 1 IHCP09-161-S16-200 16 16 200 30 1 IHCP09-171-S16-150 17 16 150 30 1 IHCP09-171-S16-200 17 16 200 30 1 IHCP09-212-S20-150 21 20 150 30 2 IHCP09-212-S20-200 21 20 200 30 2 CPMT0903... MS4009A IHCP09-252-S25-150 25 25 150 40 2 IHCP09-252-S25-200 25 25 200 40 2 IHCP09-262-S25-150 26 25 150 40 2 IHCP09-262-S25-200 26 25 200 40 2 TF15 IHCP09-262-S25-250 26 25 250 40 2 IHCP09-332-S32-150 33 32 150 40 2 IHCP09-332-S32-200 33 32 200 40 2 IHCP09-332-S32-250 33 32 250 40 2 IHCP09-332-S32-300 33 32 300 40 2 CPMT0903... MS4011A IHCP09-333-S32-150 33 32 150 40 3 IHCP09-333-S32-200 33 32 200 40 3 IHCP09-333-S32-250 33 32 250 40 3 IHCP09-333-S32-300 33 32 300 40 3 IHCP12-332-S32-150 33 32 150 40 2 IHCP12-332-S32-200 33 32 200 40 2 CPMT1204... MS5011A TF20 IHCP12-332-S32-250 33 32 250 40 2 IHCP12-332-S32-300 33 32 300 40 2 CPMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium 11° H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade Ic S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ 090308-MG 9.525 3.18 0.8 4.4 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CPMT CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ 120408-MG 12.7 4.76 0.8 5.5 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B22
