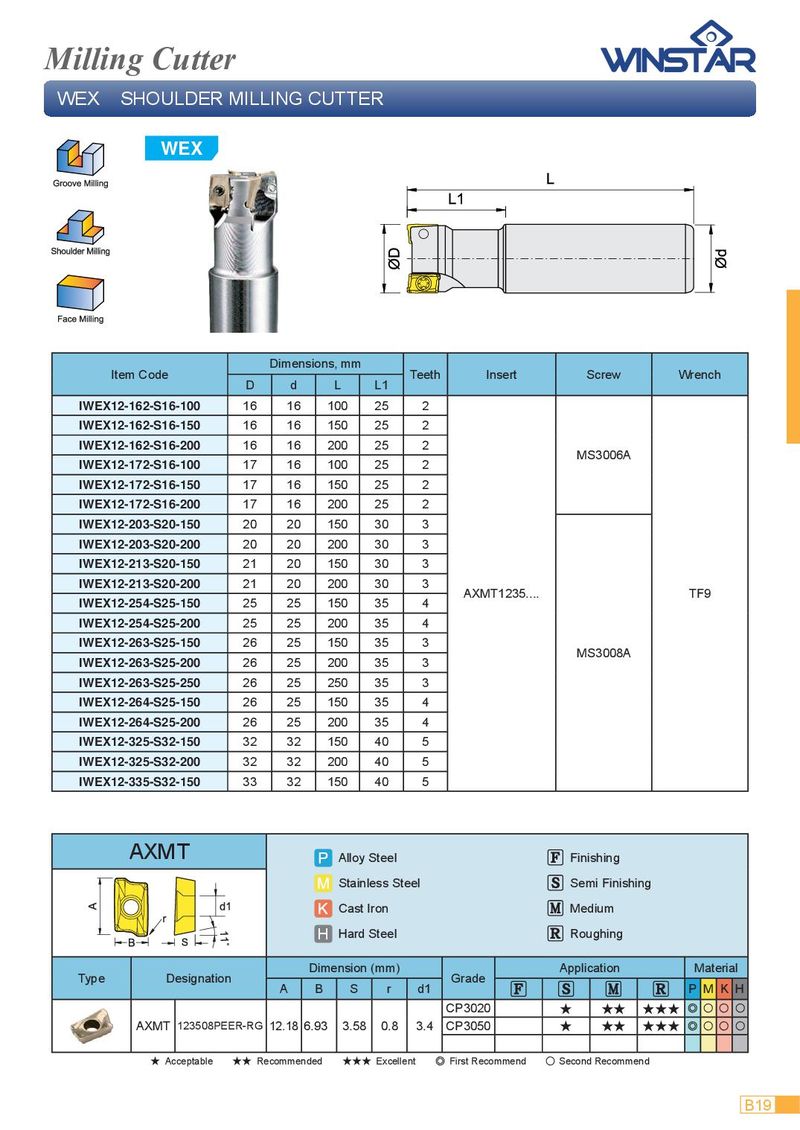

Milling Cutter WEX SHOULDER MILLING CUTTER WEX Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IWEX12-162-S16-100 16 16 100 25 2 IWEX12-162-S16-150 16 16 150 25 2 IWEX12-162-S16-200 16 16 200 25 2 MS3006A IWEX12-172-S16-100 17 16 100 25 2 IWEX12-172-S16-150 17 16 150 25 2 IWEX12-172-S16-200 17 16 200 25 2 IWEX12-203-S20-150 20 20 150 30 3 IWEX12-203-S20-200 20 20 200 30 3 IWEX12-213-S20-150 21 20 150 30 3 IWEX12-213-S20-200 21 20 200 30 3 AXMT1235.... TF9 IWEX12-254-S25-150 25 25 150 35 4 IWEX12-254-S25-200 25 25 200 35 4 IWEX12-263-S25-150 26 25 150 35 3 MS3008A IWEX12-263-S25-200 26 25 200 35 3 IWEX12-263-S25-250 26 25 250 35 3 IWEX12-264-S25-150 26 25 150 35 4 IWEX12-264-S25-200 26 25 200 35 4 IWEX12-325-S32-150 32 32 150 40 5 IWEX12-325-S32-200 32 32 200 40 5 IWEX12-335-S32-150 33 32 150 40 5 AXMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 123508PEER-RG 12.18 6.93 3.58 0.8 3.4 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B19
