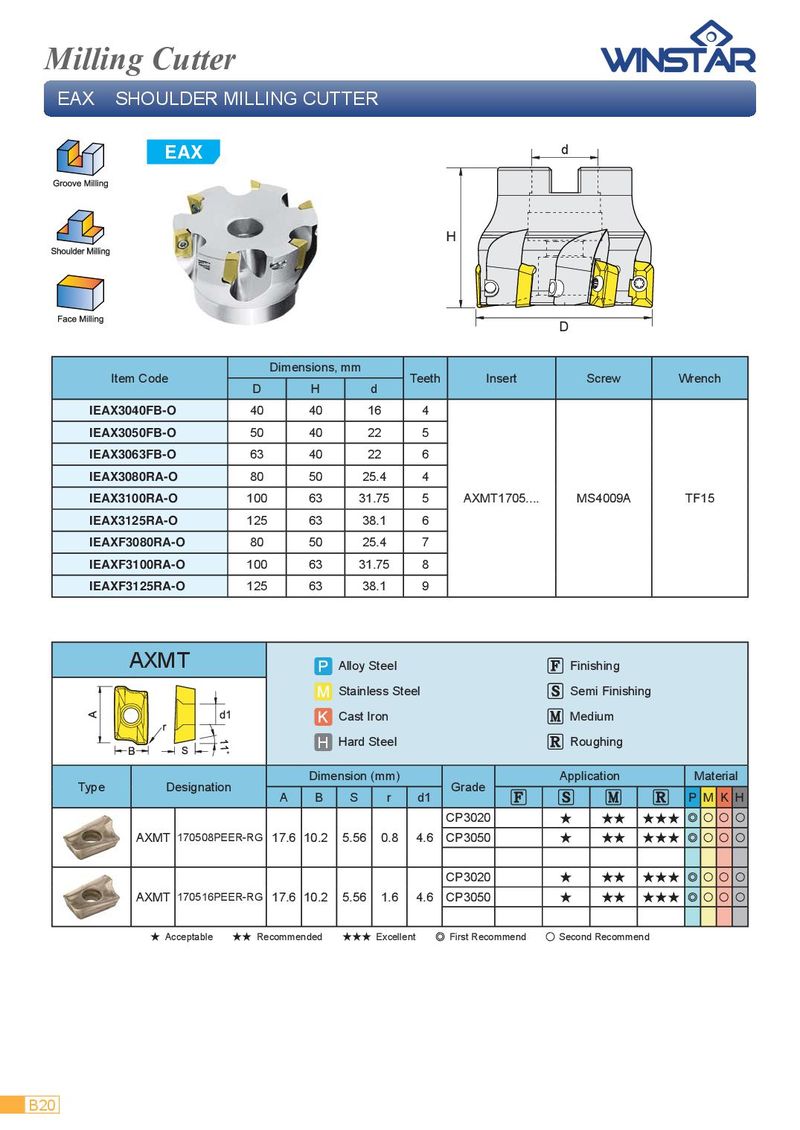

Milling Cutter EAX SHOULDER MILLING CUTTER EAX d H D Dimensions, mm Item Code Teeth Insert Screw Wrench D H d IEAX3040FB-O 40 40 16 4 IEAX3050FB-O 50 40 22 5 IEAX3063FB-O 63 40 22 6 IEAX3080RA-O 80 50 25.4 4 IEAX3100RA-O 100 63 31.75 5 AXMT1705.... MS4009A TF15 IEAX3125RA-O 125 63 38.1 6 IEAXF3080RA-O 80 50 25.4 7 IEAXF3100RA-O 100 63 31.75 8 IEAXF3125RA-O 125 63 38.1 9 AXMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 170508PEER-RG 17.6 10.2 5.56 0.8 4.6 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 170516PEER-RG 17.6 10.2 5.56 1.6 4.6 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B20
