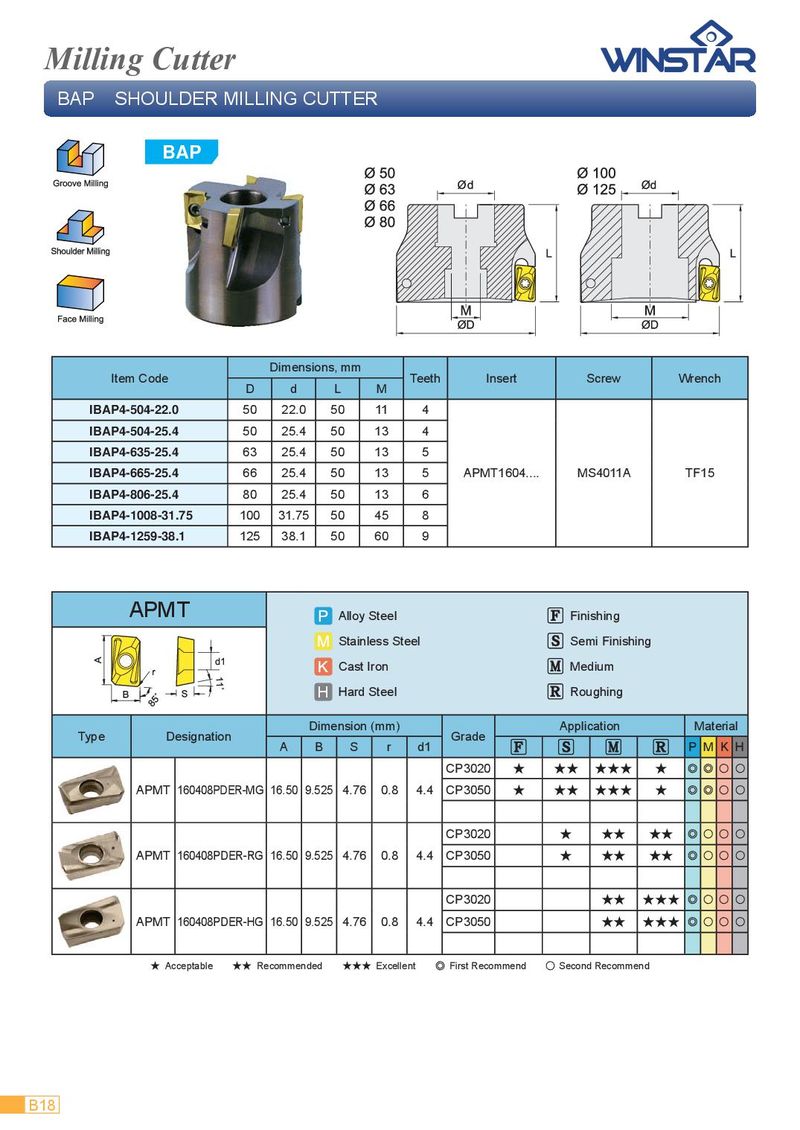

Milling Cutter BAP SHOULDER MILLING CUTTER BAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IBAP4-504-22.0 50 22.0 50 11 4 IBAP4-504-25.4 50 25.4 50 13 4 IBAP4-635-25.4 63 25.4 50 13 5 IBAP4-665-25.4 66 25.4 50 13 5 APMT1604.... MS4011A TF15 IBAP4-806-25.4 80 25.4 50 13 6 IBAP4-1008-31.75 100 31.75 50 45 8 IBAP4-1259-38.1 125 38.1 50 60 9 APMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APMT 160408PDER-MG 16.50 9.525 4.76 0.8 4.4 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APMT 160408PDER-RG 16.50 9.525 4.76 0.8 4.4 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ○ ○ APMT 160408PDER-HG 16.50 9.525 4.76 0.8 4.4 CP3050 ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B18
