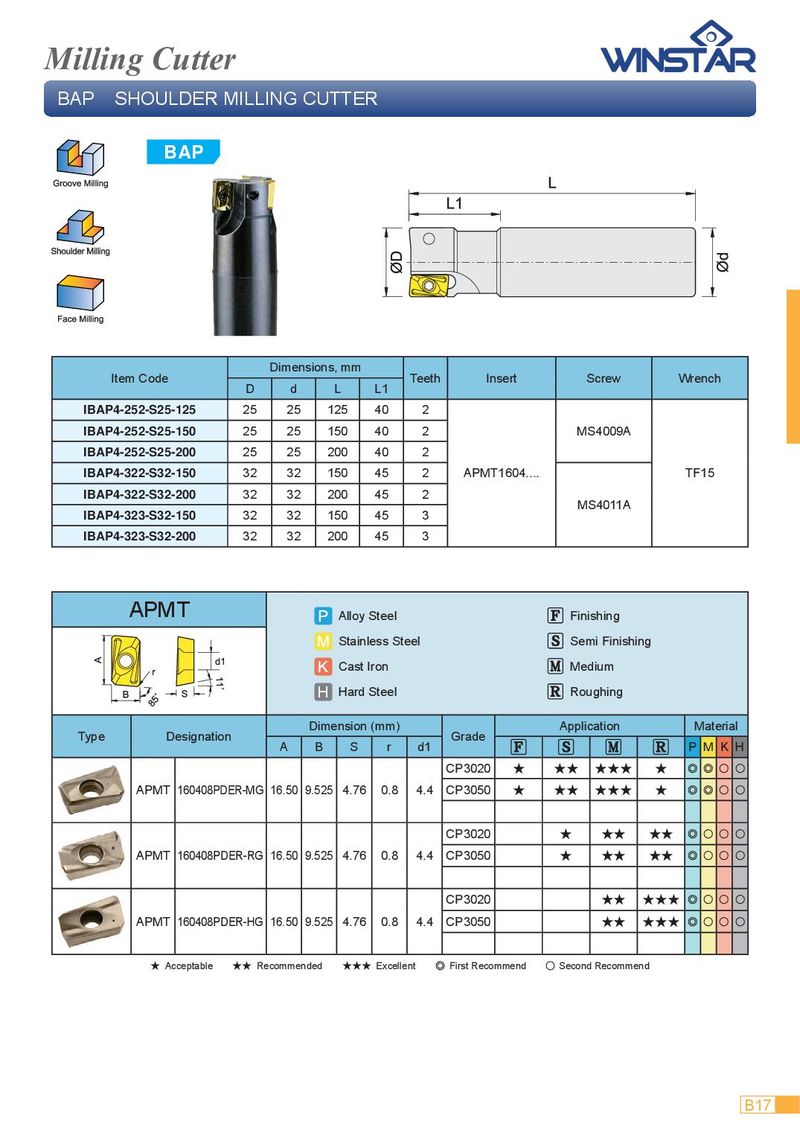

Milling Cutter BAP SHOULDER MILLING CUTTER BAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IBAP4-252-S25-125 25 25 125 40 2 IBAP4-252-S25-150 25 25 150 40 2 MS4009A IBAP4-252-S25-200 25 25 200 40 2 IBAP4-322-S32-150 32 32 150 45 2 APMT1604.... TF15 IBAP4-322-S32-200 32 32 200 45 2 MS4011A IBAP4-323-S32-150 32 32 150 45 3 IBAP4-323-S32-200 32 32 200 45 3 APMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APMT 160408PDER-MG 16.50 9.525 4.76 0.8 4.4 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APMT 160408PDER-RG 16.50 9.525 4.76 0.8 4.4 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ○ ○ APMT 160408PDER-HG 16.50 9.525 4.76 0.8 4.4 CP3050 ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B17
