Общий каталог Winstar 2015 - 2016 - страница 124

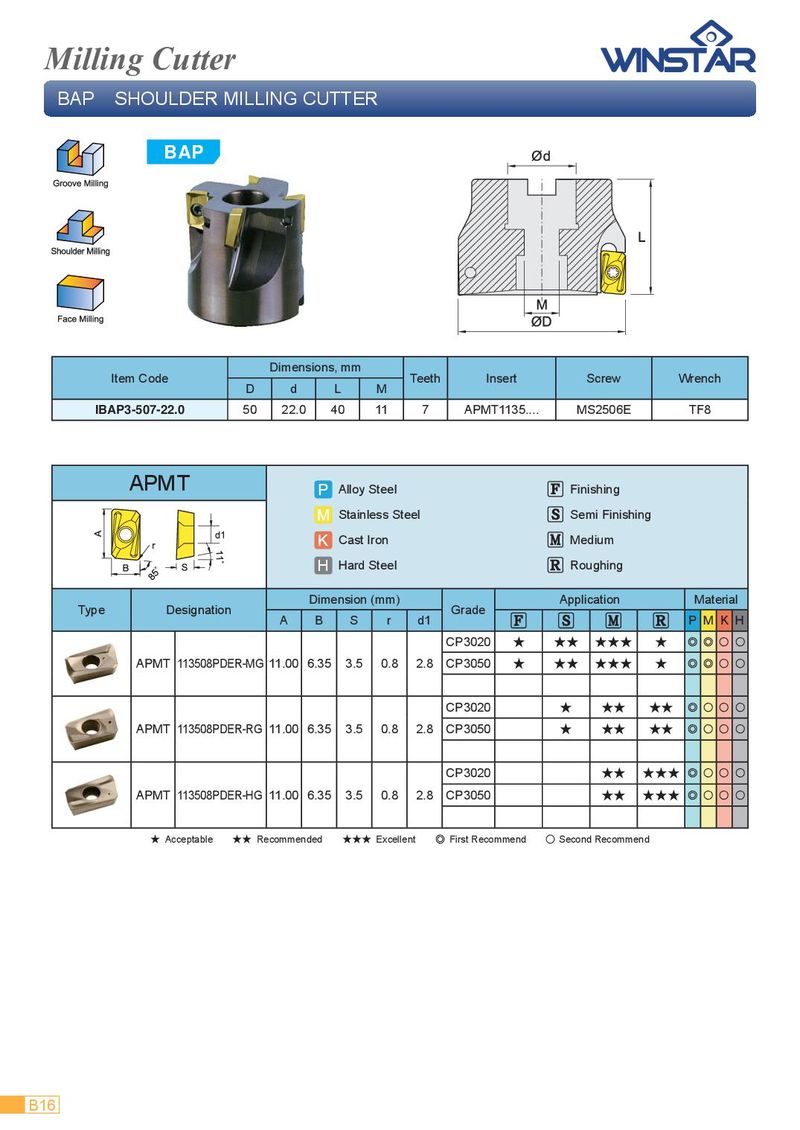

Milling Cutter BAP SHOULDER MILLING CUTTER BAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IBAP3-507-22.0 50 22.0 40 11 7 APMT1135.... MS2506E TF8 APMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APMT 113508PDER-MG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APMT 113508PDER-RG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ○ ○ APMT 113508PDER-HG 11.00 6.35 3.5 0.8 2.8 CP3050 ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B16
