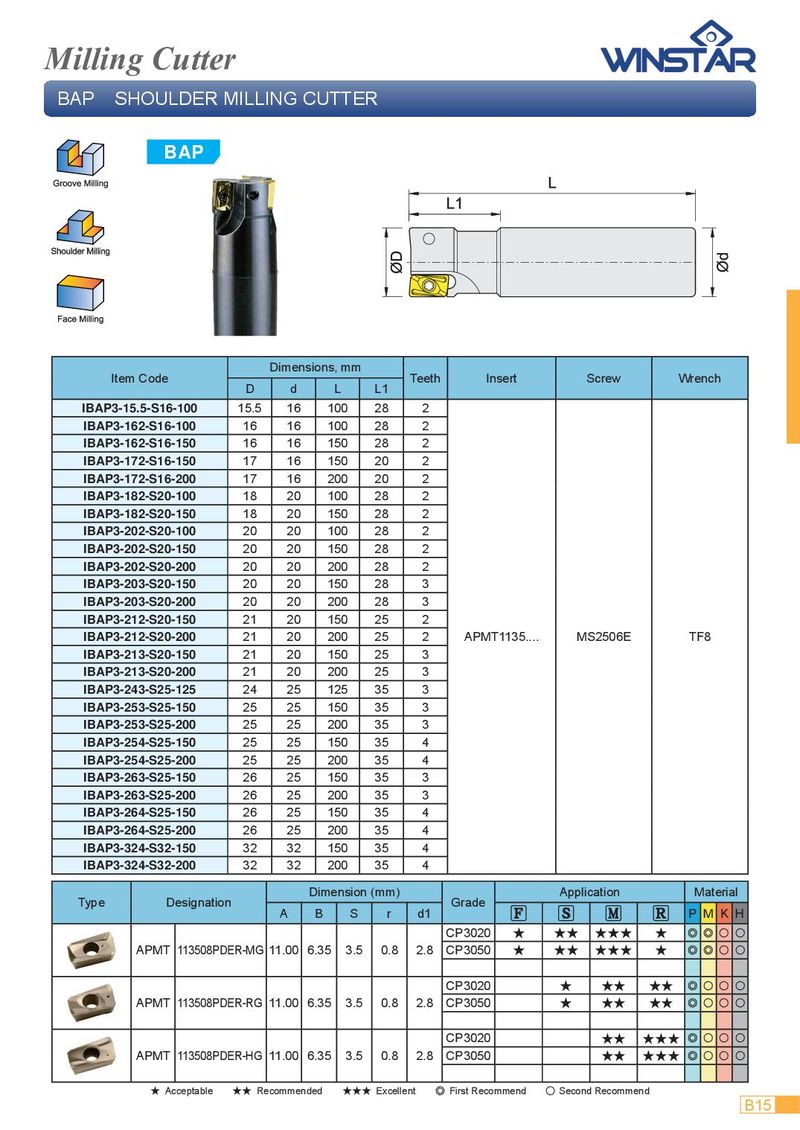

Milling Cutter BAP SHOULDER MILLING CUTTER BAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IBAP3-15.5-S16-100 15.5 16 100 28 2 IBAP3-162-S16-100 16 16 100 28 2 IBAP3-162-S16-150 16 16 150 28 2 IBAP3-172-S16-150 17 16 150 20 2 IBAP3-172-S16-200 17 16 200 20 2 IBAP3-182-S20-100 18 20 100 28 2 IBAP3-182-S20-150 18 20 150 28 2 IBAP3-202-S20-100 20 20 100 28 2 IBAP3-202-S20-150 20 20 150 28 2 IBAP3-202-S20-200 20 20 200 28 2 IBAP3-203-S20-150 20 20 150 28 3 IBAP3-203-S20-200 20 20 200 28 3 IBAP3-212-S20-150 21 20 150 25 2 IBAP3-212-S20-200 21 20 200 25 2 APMT1135.... MS2506E TF8 IBAP3-213-S20-150 21 20 150 25 3 IBAP3-213-S20-200 21 20 200 25 3 IBAP3-243-S25-125 24 25 125 35 3 IBAP3-253-S25-150 25 25 150 35 3 IBAP3-253-S25-200 25 25 200 35 3 IBAP3-254-S25-150 25 25 150 35 4 IBAP3-254-S25-200 25 25 200 35 4 IBAP3-263-S25-150 26 25 150 35 3 IBAP3-263-S25-200 26 25 200 35 3 IBAP3-264-S25-150 26 25 150 35 4 IBAP3-264-S25-200 26 25 200 35 4 IBAP3-324-S32-150 32 32 150 35 4 IBAP3-324-S32-200 32 32 200 35 4 Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APMT 113508PDER-MG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APMT 113508PDER-RG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ○ ○ APMT 113508PDER-HG 11.00 6.35 3.5 0.8 2.8 CP3050 ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B15
