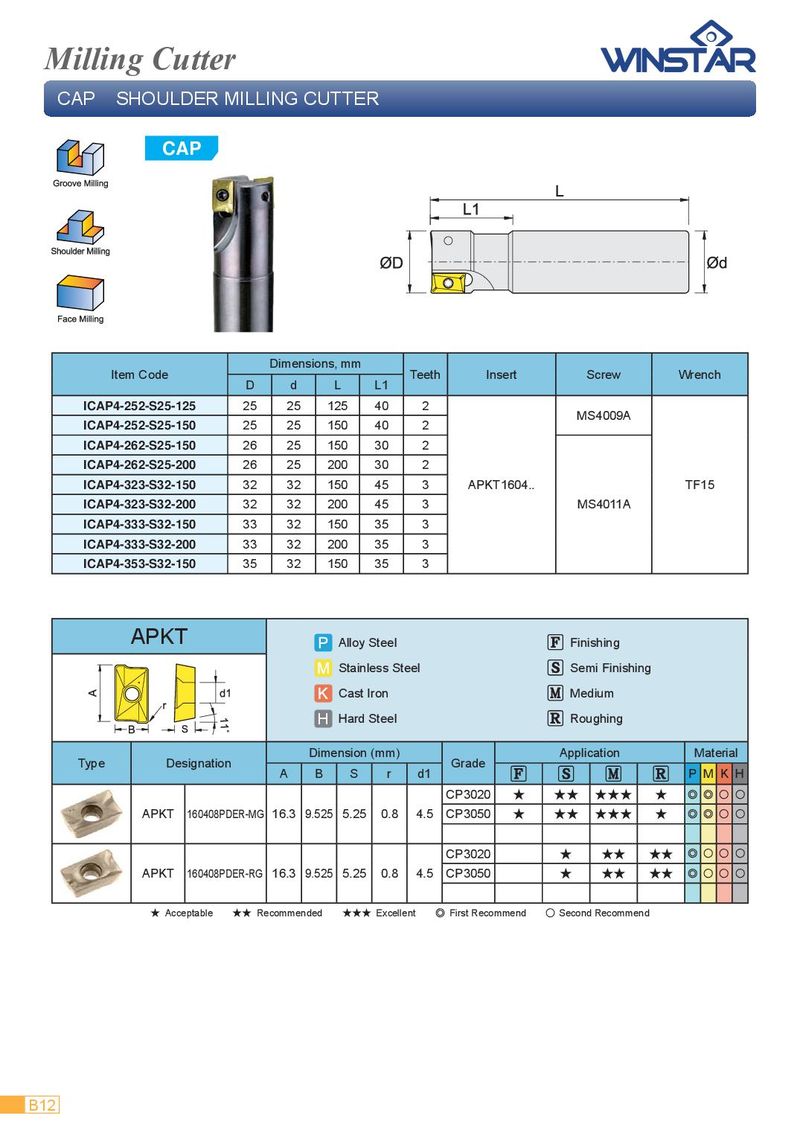

Milling Cutter CAP SHOULDER MILLING CUTTER CAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 ICAP4-252-S25-125 25 25 125 40 2 MS4009A ICAP4-252-S25-150 25 25 150 40 2 ICAP4-262-S25-150 26 25 150 30 2 ICAP4-262-S25-200 26 25 200 30 2 ICAP4-323-S32-150 32 32 150 45 3 APKT1604.. TF15 ICAP4-323-S32-200 32 32 200 45 3 MS4011A ICAP4-333-S32-150 33 32 150 35 3 ICAP4-333-S32-200 33 32 200 35 3 ICAP4-353-S32-150 35 32 150 35 3 APKT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APKT 160408PDER-MG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APKT 160408PDER-RG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B12
