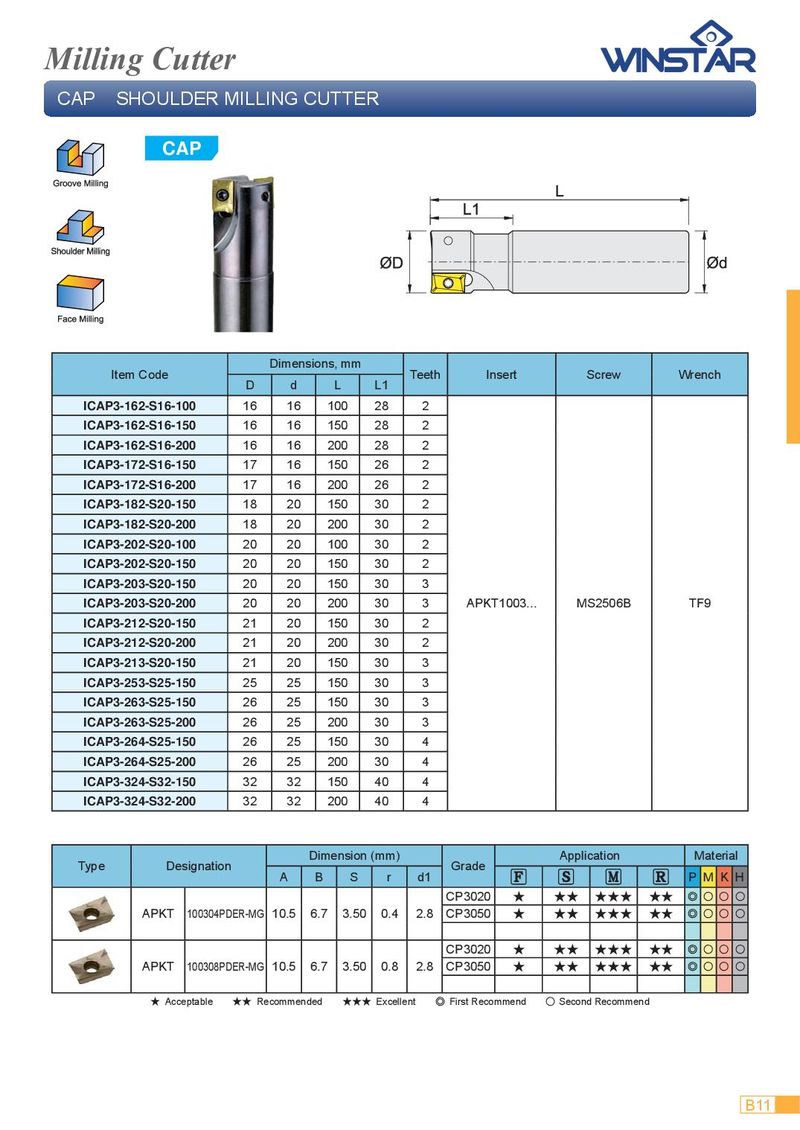

Milling Cutter CAP SHOULDER MILLING CUTTER CAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 ICAP3-162-S16-100 16 16 100 28 2 ICAP3-162-S16-150 16 16 150 28 2 ICAP3-162-S16-200 16 16 200 28 2 ICAP3-172-S16-150 17 16 150 26 2 ICAP3-172-S16-200 17 16 200 26 2 ICAP3-182-S20-150 18 20 150 30 2 ICAP3-182-S20-200 18 20 200 30 2 ICAP3-202-S20-100 20 20 100 30 2 ICAP3-202-S20-150 20 20 150 30 2 ICAP3-203-S20-150 20 20 150 30 3 ICAP3-203-S20-200 20 20 200 30 3 APKT1003... MS2506B TF9 ICAP3-212-S20-150 21 20 150 30 2 ICAP3-212-S20-200 21 20 200 30 2 ICAP3-213-S20-150 21 20 150 30 3 ICAP3-253-S25-150 25 25 150 30 3 ICAP3-263-S25-150 26 25 150 30 3 ICAP3-263-S25-200 26 25 200 30 3 ICAP3-264-S25-150 26 25 150 30 4 ICAP3-264-S25-200 26 25 200 30 4 ICAP3-324-S32-150 32 32 150 40 4 ICAP3-324-S32-200 32 32 200 40 4 Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ APKT 100304PDER-MG 10.5 6.7 3.50 0.4 2.8 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ APKT 100308PDER-MG 10.5 6.7 3.50 0.8 2.8 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B11
