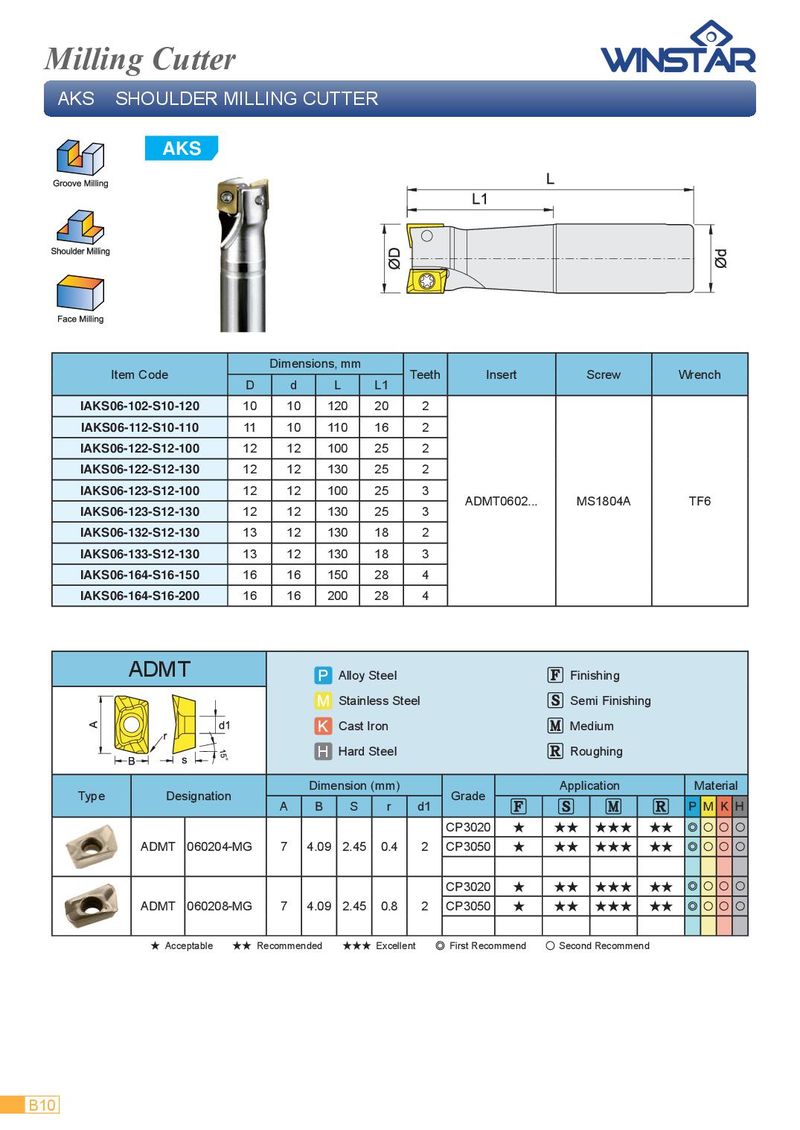

Milling Cutter AKS SHOULDER MILLING CUTTER AKS Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 IAKS06-102-S10-120 10 10 120 20 2 IAKS06-112-S10-110 11 10 110 16 2 IAKS06-122-S12-100 12 12 100 25 2 IAKS06-122-S12-130 12 12 130 25 2 IAKS06-123-S12-100 12 12 100 25 3 ADMT0602... MS1804A TF6 IAKS06-123-S12-130 12 12 130 25 3 IAKS06-132-S12-130 13 12 130 18 2 IAKS06-133-S12-130 13 12 130 18 3 IAKS06-164-S16-150 16 16 150 28 4 IAKS06-164-S16-200 16 16 200 28 4 ADMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060204-MG 7 4.09 2.45 0.4 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060208-MG 7 4.09 2.45 0.8 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B10
