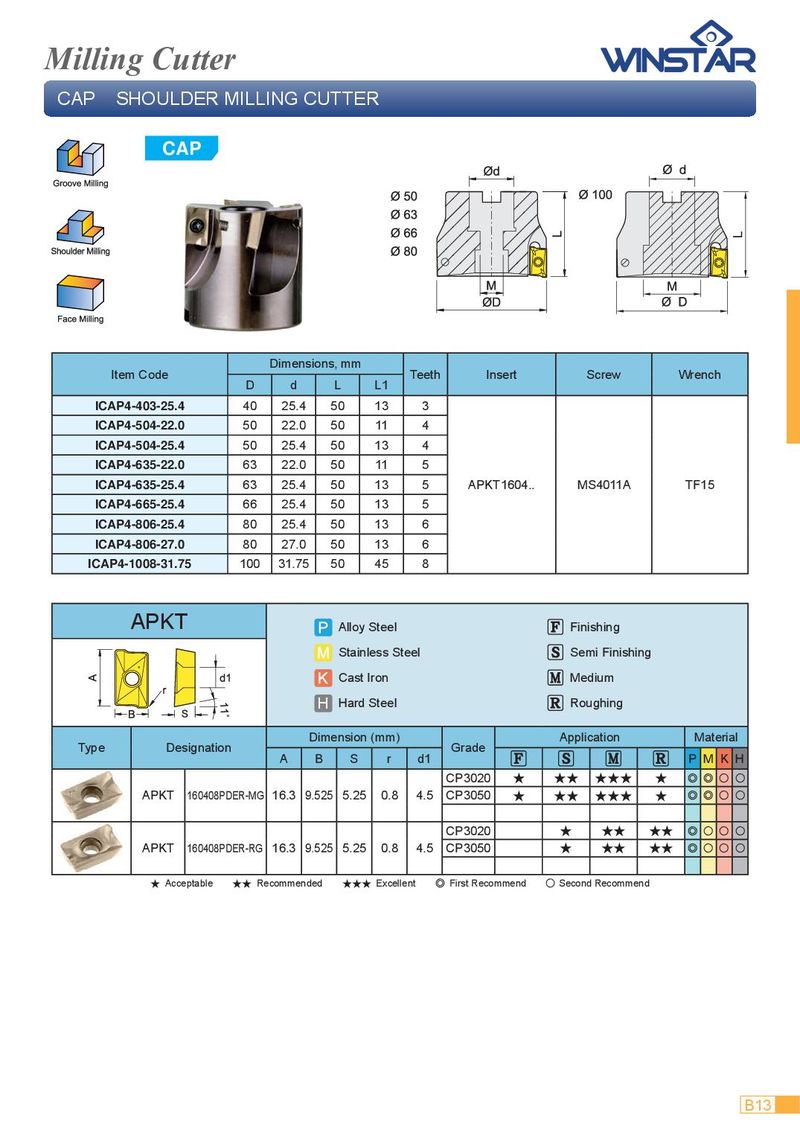

Milling Cutter CAP SHOULDER MILLING CUTTER CAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L L1 ICAP4-403-25.4 40 25.4 50 13 3 ICAP4-504-22.0 50 22.0 50 11 4 ICAP4-504-25.4 50 25.4 50 13 4 ICAP4-635-22.0 63 22.0 50 11 5 ICAP4-635-25.4 63 25.4 50 13 5 APKT1604.. MS4011A TF15 ICAP4-665-25.4 66 25.4 50 13 5 ICAP4-806-25.4 80 25.4 50 13 6 ICAP4-806-27.0 80 27.0 50 13 6 ICAP4-1008-31.75 100 31.75 50 45 8 APKT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APKT 160408PDER-MG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APKT 160408PDER-RG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B13
