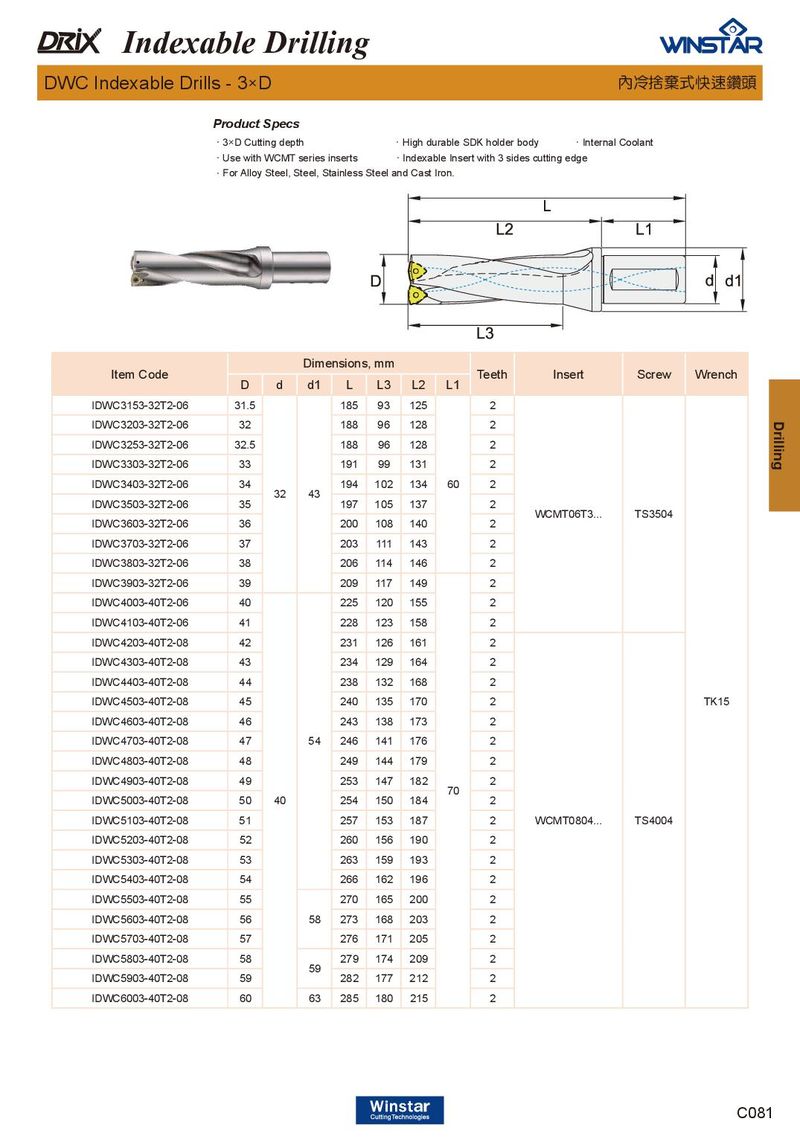

Indexable Drilling DWC Indexable Drills - 3×D 內冷捨棄式快速鑽頭 Product Specs ． 3×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC3153-32T2-06 31.5 185 93 125 2 Drilling IDWC3203-32T2-06 32 188 96 128 2 IDWC3253-32T2-06 32.5 188 96 128 2 IDWC3303-32T2-06 33 191 99 131 2 IDWC3403-32T2-06 34 194 102 134 60 2 32 43 IDWC3503-32T2-06 35 197 105 137 2 WCMT06T3... TS3504 IDWC3603-32T2-06 36 200 108 140 2 IDWC3703-32T2-06 37 203 111 143 2 IDWC3803-32T2-06 38 206 114 146 2 IDWC3903-32T2-06 39 209 117 149 2 IDWC4003-40T2-06 40 225 120 155 2 IDWC4103-40T2-06 41 228 123 158 2 IDWC4203-40T2-08 42 231 126 161 2 IDWC4303-40T2-08 43 234 129 164 2 IDWC4403-40T2-08 44 238 132 168 2 IDWC4503-40T2-08 45 240 135 170 2 TK15 IDWC4603-40T2-08 46 243 138 173 2 IDWC4703-40T2-08 47 54 246 141 176 2 IDWC4803-40T2-08 48 249 144 179 2 IDWC4903-40T2-08 49 253 147 182 2 70 IDWC5003-40T2-08 50 40 254 150 184 2 IDWC5103-40T2-08 51 257 153 187 2 WCMT0804... TS4004 IDWC5203-40T2-08 52 260 156 190 2 IDWC5303-40T2-08 53 263 159 193 2 IDWC5403-40T2-08 54 266 162 196 2 IDWC5503-40T2-08 55 270 165 200 2 IDWC5603-40T2-08 56 58 273 168 203 2 IDWC5703-40T2-08 57 276 171 205 2 IDWC5803-40T2-08 58 279 174 209 2 59 IDWC5903-40T2-08 59 282 177 212 2 IDWC6003-40T2-08 60 63 285 180 215 2 C081
