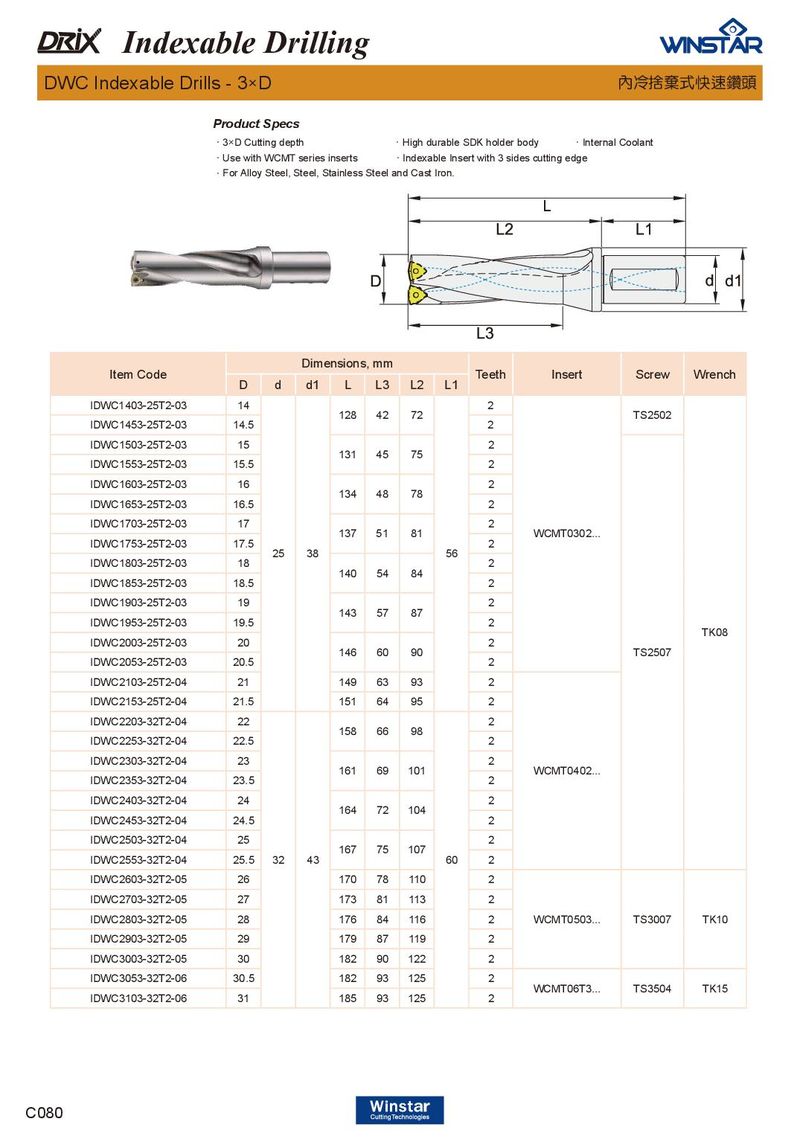

Indexable Drilling DWC Indexable Drills - 3×D 內冷捨棄式快速鑽頭 Product Specs ． 3×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC1403-25T2-03 14 2 128 42 72 TS2502 IDWC1453-25T2-03 14.5 2 IDWC1503-25T2-03 15 2 131 45 75 IDWC1553-25T2-03 15.5 2 IDWC1603-25T2-03 16 2 134 48 78 IDWC1653-25T2-03 16.5 2 IDWC1703-25T2-03 17 2 137 51 81 WCMT0302... IDWC1753-25T2-03 17.5 2 25 38 56 IDWC1803-25T2-03 18 2 140 54 84 IDWC1853-25T2-03 18.5 2 IDWC1903-25T2-03 19 2 143 57 87 IDWC1953-25T2-03 19.5 2 TK08 IDWC2003-25T2-03 20 2 146 60 90 TS2507 IDWC2053-25T2-03 20.5 2 IDWC2103-25T2-04 21 149 63 93 2 IDWC2153-25T2-04 21.5 151 64 95 2 IDWC2203-32T2-04 22 2 158 66 98 IDWC2253-32T2-04 22.5 2 IDWC2303-32T2-04 23 2 161 69 101 WCMT0402... IDWC2353-32T2-04 23.5 2 IDWC2403-32T2-04 24 2 164 72 104 IDWC2453-32T2-04 24.5 2 IDWC2503-32T2-04 25 2 167 75 107 IDWC2553-32T2-04 25.5 32 43 60 2 IDWC2603-32T2-05 26 170 78 110 2 IDWC2703-32T2-05 27 173 81 113 2 IDWC2803-32T2-05 28 176 84 116 2 WCMT0503... TS3007 TK10 IDWC2903-32T2-05 29 179 87 119 2 IDWC3003-32T2-05 30 182 90 122 2 IDWC3053-32T2-06 30.5 182 93 125 2 WCMT06T3... TS3504 TK15 IDWC3103-32T2-06 31 185 93 125 2 C080
