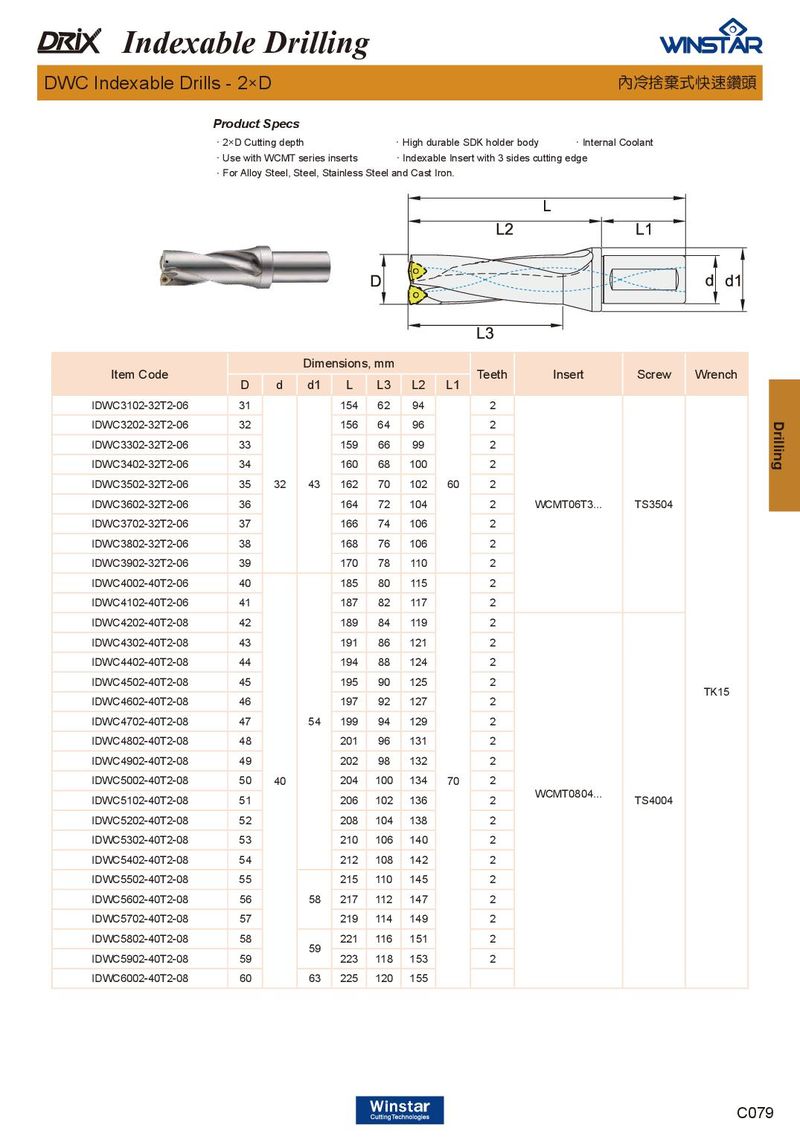

Indexable Drilling DWC Indexable Drills - 2×D 內冷捨棄式快速鑽頭 Product Specs ． 2×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC3102-32T2-06 31 154 62 94 2 Drilling IDWC3202-32T2-06 32 156 64 96 2 IDWC3302-32T2-06 33 159 66 99 2 IDWC3402-32T2-06 34 160 68 100 2 IDWC3502-32T2-06 35 32 43 162 70 102 60 2 IDWC3602-32T2-06 36 164 72 104 2 WCMT06T3... TS3504 IDWC3702-32T2-06 37 166 74 106 2 IDWC3802-32T2-06 38 168 76 106 2 IDWC3902-32T2-06 39 170 78 110 2 IDWC4002-40T2-06 40 185 80 115 2 IDWC4102-40T2-06 41 187 82 117 2 IDWC4202-40T2-08 42 189 84 119 2 IDWC4302-40T2-08 43 191 86 121 2 IDWC4402-40T2-08 44 194 88 124 2 IDWC4502-40T2-08 45 195 90 125 2 TK15 IDWC4602-40T2-08 46 197 92 127 2 IDWC4702-40T2-08 47 54 199 94 129 2 IDWC4802-40T2-08 48 201 96 131 2 IDWC4902-40T2-08 49 202 98 132 2 IDWC5002-40T2-08 50 40 204 100 134 70 2 WCMT0804... IDWC5102-40T2-08 51 206 102 136 2 TS4004 IDWC5202-40T2-08 52 208 104 138 2 IDWC5302-40T2-08 53 210 106 140 2 IDWC5402-40T2-08 54 212 108 142 2 IDWC5502-40T2-08 55 215 110 145 2 IDWC5602-40T2-08 56 58 217 112 147 2 IDWC5702-40T2-08 57 219 114 149 2 IDWC5802-40T2-08 58 221 116 151 2 59 IDWC5902-40T2-08 59 223 118 153 2 IDWC6002-40T2-08 60 63 225 120 155 C079
