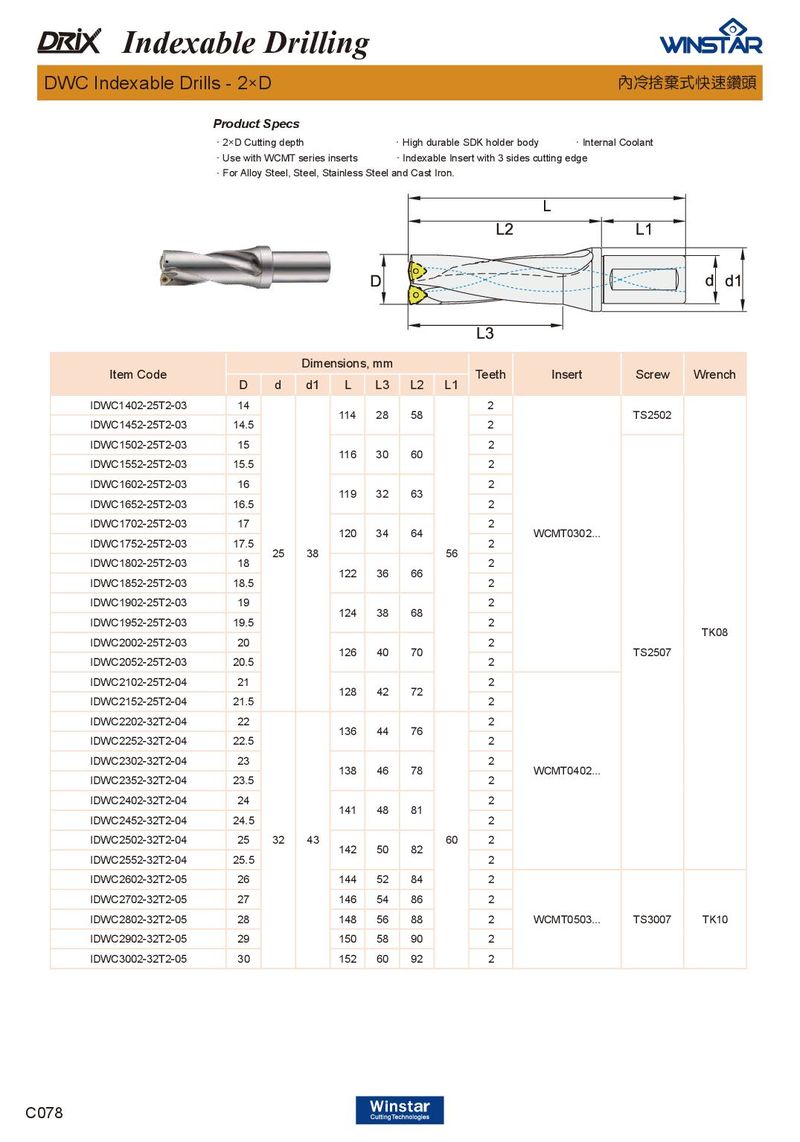

Indexable Drilling DWC Indexable Drills - 2×D 內冷捨棄式快速鑽頭 Product Specs ． 2×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC1402-25T2-03 14 2 114 28 58 TS2502 IDWC1452-25T2-03 14.5 2 IDWC1502-25T2-03 15 2 116 30 60 IDWC1552-25T2-03 15.5 2 IDWC1602-25T2-03 16 2 119 32 63 IDWC1652-25T2-03 16.5 2 IDWC1702-25T2-03 17 2 120 34 64 WCMT0302... IDWC1752-25T2-03 17.5 2 25 38 56 IDWC1802-25T2-03 18 2 122 36 66 IDWC1852-25T2-03 18.5 2 IDWC1902-25T2-03 19 2 124 38 68 IDWC1952-25T2-03 19.5 2 TK08 IDWC2002-25T2-03 20 2 126 40 70 TS2507 IDWC2052-25T2-03 20.5 2 IDWC2102-25T2-04 21 2 128 42 72 IDWC2152-25T2-04 21.5 2 IDWC2202-32T2-04 22 2 136 44 76 IDWC2252-32T2-04 22.5 2 IDWC2302-32T2-04 23 2 138 46 78 WCMT0402... IDWC2352-32T2-04 23.5 2 IDWC2402-32T2-04 24 2 141 48 81 IDWC2452-32T2-04 24.5 2 IDWC2502-32T2-04 25 32 43 60 2 142 50 82 IDWC2552-32T2-04 25.5 2 IDWC2602-32T2-05 26 144 52 84 2 IDWC2702-32T2-05 27 146 54 86 2 IDWC2802-32T2-05 28 148 56 88 2 WCMT0503... TS3007 TK10 IDWC2902-32T2-05 29 150 58 90 2 IDWC3002-32T2-05 30 152 60 92 2 C078
