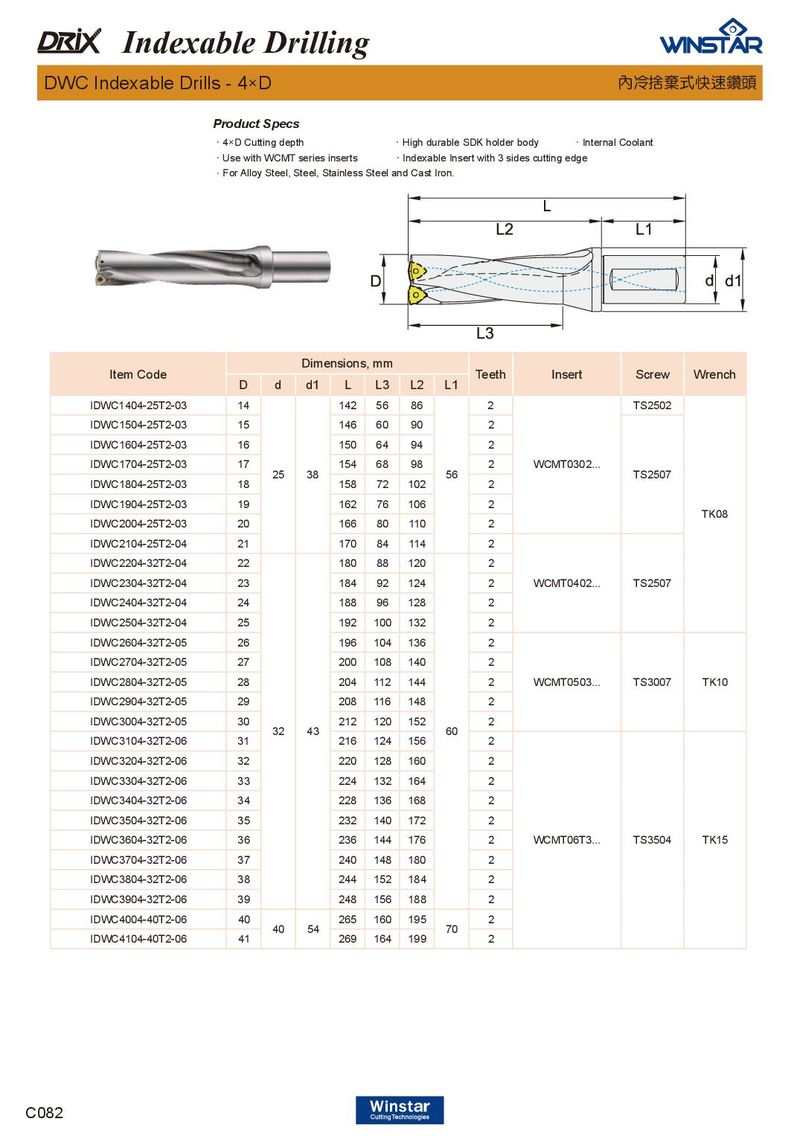

Indexable Drilling DWC Indexable Drills - 4×D 內冷捨棄式快速鑽頭 Product Specs ． 4×D Cutting depth ． High durable SDK holder body ． Internal Coolant ． Use with WCMT series inserts ． Indexable Insert with 3 sides cutting edge ． For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Dimensions, mm Item Code Teeth Insert Screw Wrench D d d1 L L3 L2 L1 IDWC1404-25T2-03 14 142 56 86 2 TS2502 IDWC1504-25T2-03 15 146 60 90 2 IDWC1604-25T2-03 16 150 64 94 2 IDWC1704-25T2-03 17 154 68 98 2 WCMT0302... 25 38 56 TS2507 IDWC1804-25T2-03 18 158 72 102 2 IDWC1904-25T2-03 19 162 76 106 2 TK08 IDWC2004-25T2-03 20 166 80 110 2 IDWC2104-25T2-04 21 170 84 114 2 IDWC2204-32T2-04 22 180 88 120 2 IDWC2304-32T2-04 23 184 92 124 2 WCMT0402... TS2507 IDWC2404-32T2-04 24 188 96 128 2 IDWC2504-32T2-04 25 192 100 132 2 IDWC2604-32T2-05 26 196 104 136 2 IDWC2704-32T2-05 27 200 108 140 2 IDWC2804-32T2-05 28 204 112 144 2 WCMT0503... TS3007 TK10 IDWC2904-32T2-05 29 208 116 148 2 IDWC3004-32T2-05 30 212 120 152 2 32 43 60 IDWC3104-32T2-06 31 216 124 156 2 IDWC3204-32T2-06 32 220 128 160 2 IDWC3304-32T2-06 33 224 132 164 2 IDWC3404-32T2-06 34 228 136 168 2 IDWC3504-32T2-06 35 232 140 172 2 IDWC3604-32T2-06 36 236 144 176 2 WCMT06T3... TS3504 TK15 IDWC3704-32T2-06 37 240 148 180 2 IDWC3804-32T2-06 38 244 152 184 2 IDWC3904-32T2-06 39 248 156 188 2 IDWC4004-40T2-06 40 265 160 195 2 40 54 70 IDWC4104-40T2-06 41 269 164 199 2 C082
