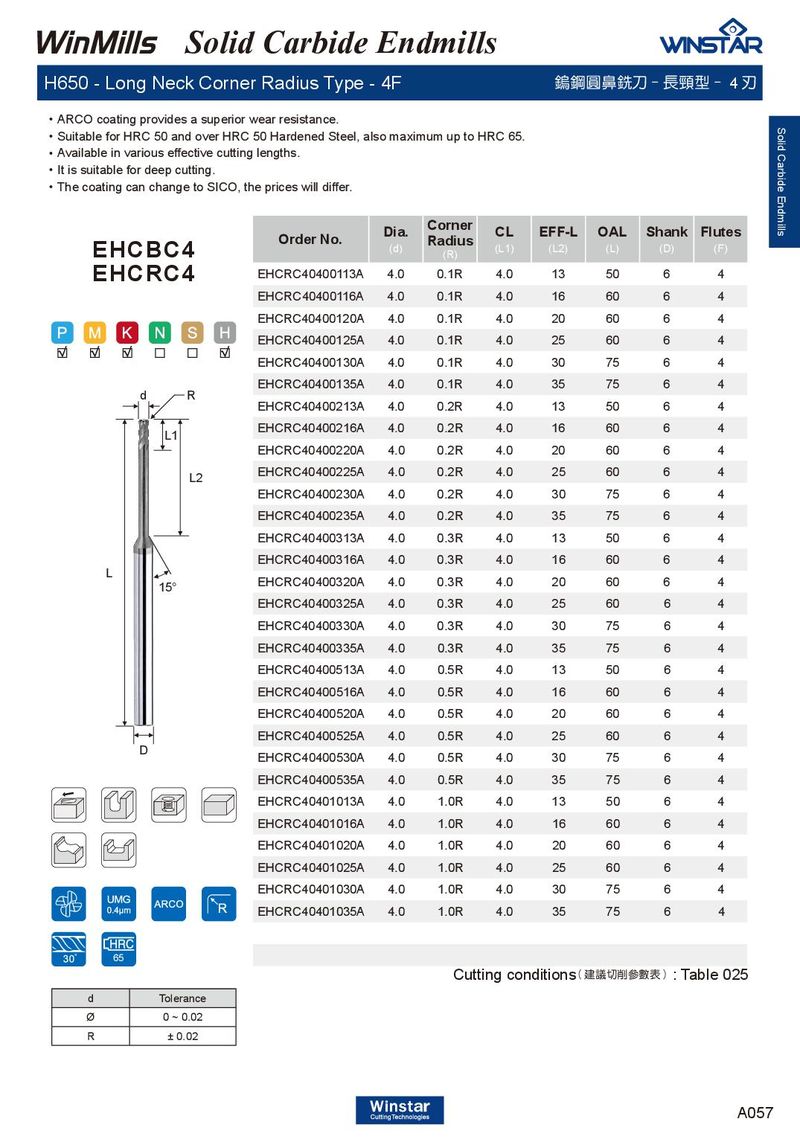

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC4 EHCRC40400113A 4.0 0.1R 4.0 13 50 6 4 EHCRC40400116A 4.0 0.1R 4.0 16 60 6 4 EHCRC40400120A 4.0 0.1R 4.0 20 60 6 4 EHCRC40400125A 4.0 0.1R 4.0 25 60 6 4 EHCRC40400130A 4.0 0.1R 4.0 30 75 6 4 EHCRC40400135A 4.0 0.1R 4.0 35 75 6 4 d R EHCRC40400213A 4.0 0.2R 4.0 13 50 6 4 EHCRC40400216A 4.0 0.2R 4.0 16 60 6 4 L1 EHCRC40400220A 4.0 0.2R 4.0 20 60 6 4 EHCRC40400225A 4.0 0.2R 4.0 25 60 6 4 L2 EHCRC40400230A 4.0 0.2R 4.0 30 75 6 4 EHCRC40400235A 4.0 0.2R 4.0 35 75 6 4 EHCRC40400313A 4.0 0.3R 4.0 13 50 6 4 EHCRC40400316A 4.0 0.3R 4.0 16 60 6 4 L EHCRC40400320A 4.0 0.3R 4.0 20 60 6 4 15° EHCRC40400325A 4.0 0.3R 4.0 25 60 6 4 EHCRC40400330A 4.0 0.3R 4.0 30 75 6 4 EHCRC40400335A 4.0 0.3R 4.0 35 75 6 4 EHCRC40400513A 4.0 0.5R 4.0 13 50 6 4 EHCRC40400516A 4.0 0.5R 4.0 16 60 6 4 EHCRC40400520A 4.0 0.5R 4.0 20 60 6 4 EHCRC40400525A 4.0 0.5R 4.0 25 60 6 4 D EHCRC40400530A 4.0 0.5R 4.0 30 75 6 4 EHCRC40400535A 4.0 0.5R 4.0 35 75 6 4 EHCRC40401013A 4.0 1.0R 4.0 13 50 6 4 EHCRC40401016A 4.0 1.0R 4.0 16 60 6 4 EHCRC40401020A 4.0 1.0R 4.0 20 60 6 4 EHCRC40401025A 4.0 1.0R 4.0 25 60 6 4 EHCRC40401030A 4.0 1.0R 4.0 30 75 6 4 EHCRC40401035A 4.0 1.0R 4.0 35 75 6 4 65 Cutting conditions ( 建議切削參數表 ) : Table 025 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A057
