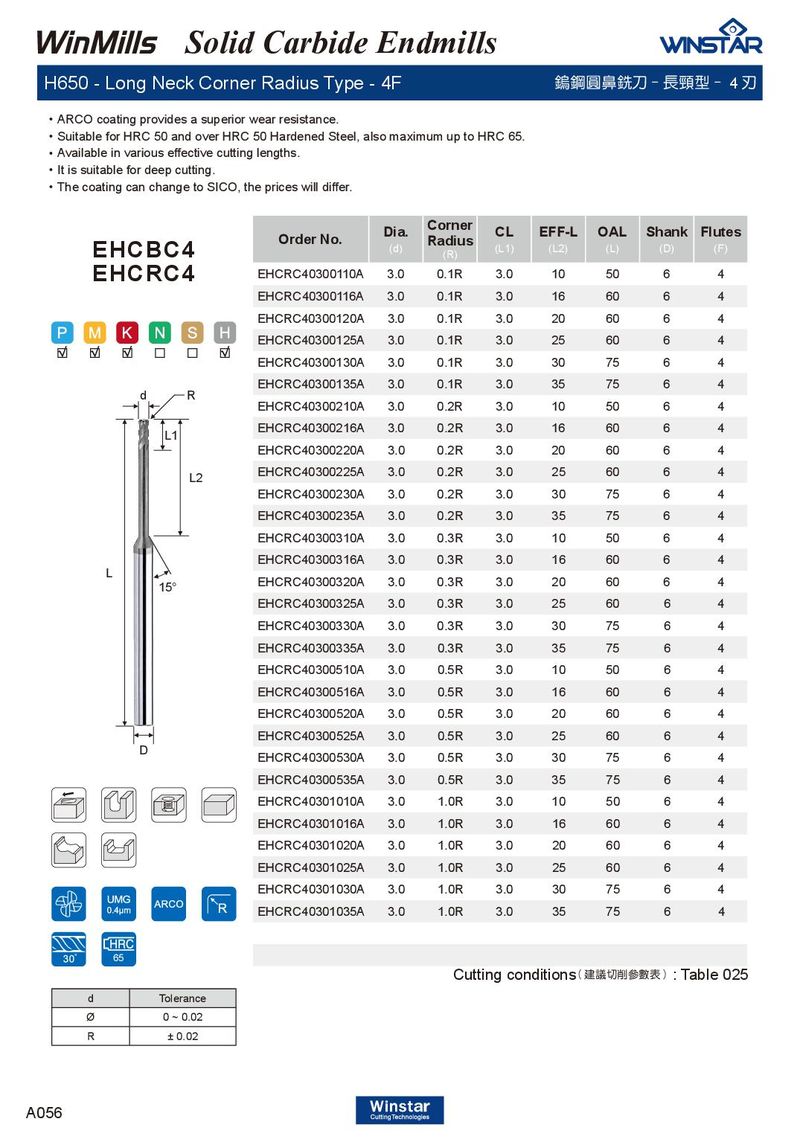

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4 刃 ． ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC4 EHCRC40300110A 3.0 0.1R 3.0 10 50 6 4 EHCRC40300116A 3.0 0.1R 3.0 16 60 6 4 EHCRC40300120A 3.0 0.1R 3.0 20 60 6 4 EHCRC40300125A 3.0 0.1R 3.0 25 60 6 4 EHCRC40300130A 3.0 0.1R 3.0 30 75 6 4 EHCRC40300135A 3.0 0.1R 3.0 35 75 6 4 d R EHCRC40300210A 3.0 0.2R 3.0 10 50 6 4 EHCRC40300216A 3.0 0.2R 3.0 16 60 6 4 L1 EHCRC40300220A 3.0 0.2R 3.0 20 60 6 4 EHCRC40300225A 3.0 0.2R 3.0 25 60 6 4 L2 EHCRC40300230A 3.0 0.2R 3.0 30 75 6 4 EHCRC40300235A 3.0 0.2R 3.0 35 75 6 4 EHCRC40300310A 3.0 0.3R 3.0 10 50 6 4 EHCRC40300316A 3.0 0.3R 3.0 16 60 6 4 L EHCRC40300320A 3.0 0.3R 3.0 20 60 6 4 15° EHCRC40300325A 3.0 0.3R 3.0 25 60 6 4 EHCRC40300330A 3.0 0.3R 3.0 30 75 6 4 EHCRC40300335A 3.0 0.3R 3.0 35 75 6 4 EHCRC40300510A 3.0 0.5R 3.0 10 50 6 4 EHCRC40300516A 3.0 0.5R 3.0 16 60 6 4 EHCRC40300520A 3.0 0.5R 3.0 20 60 6 4 EHCRC40300525A 3.0 0.5R 3.0 25 60 6 4 D EHCRC40300530A 3.0 0.5R 3.0 30 75 6 4 EHCRC40300535A 3.0 0.5R 3.0 35 75 6 4 EHCRC40301010A 3.0 1.0R 3.0 10 50 6 4 EHCRC40301016A 3.0 1.0R 3.0 16 60 6 4 EHCRC40301020A 3.0 1.0R 3.0 20 60 6 4 EHCRC40301025A 3.0 1.0R 3.0 25 60 6 4 EHCRC40301030A 3.0 1.0R 3.0 30 75 6 4 EHCRC40301035A 3.0 1.0R 3.0 35 75 6 4 65 Cutting conditions ( 建議切削參數表 ) : Table 025 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A056
