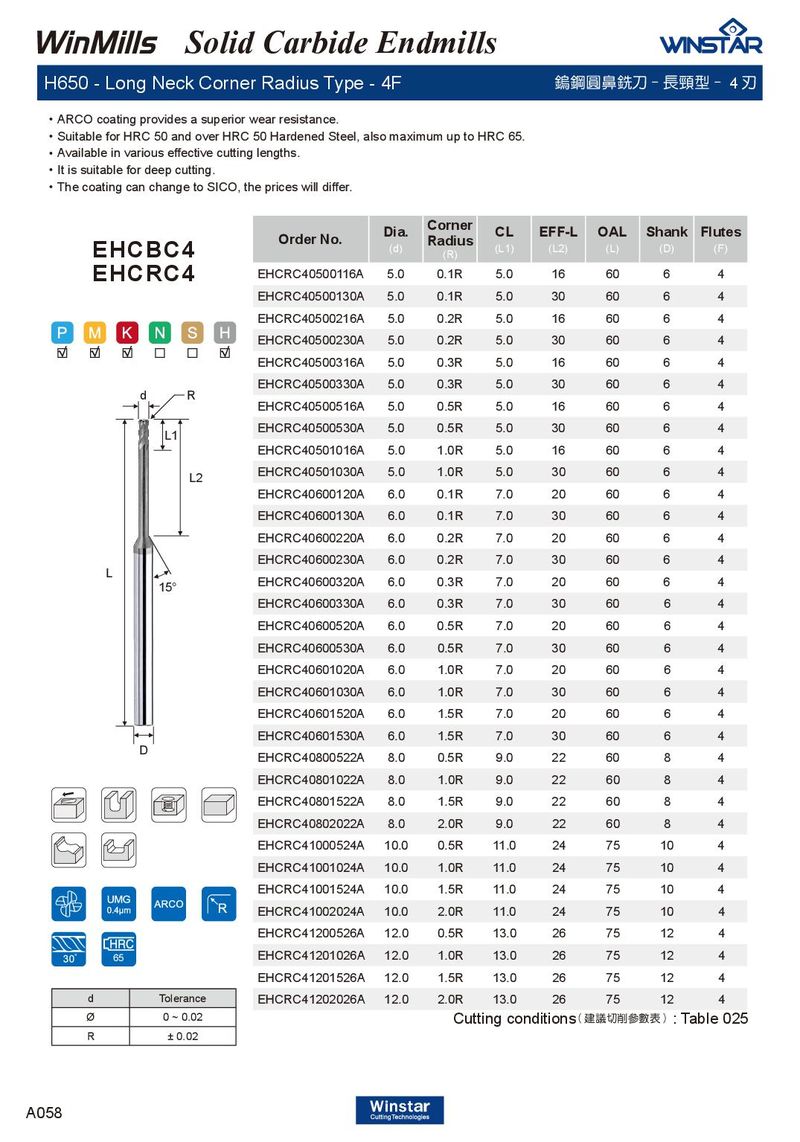

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4 刃 ． ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC4 EHCRC40500116A 5.0 0.1R 5.0 16 60 6 4 EHCRC40500130A 5.0 0.1R 5.0 30 60 6 4 EHCRC40500216A 5.0 0.2R 5.0 16 60 6 4 EHCRC40500230A 5.0 0.2R 5.0 30 60 6 4 EHCRC40500316A 5.0 0.3R 5.0 16 60 6 4 EHCRC40500330A 5.0 0.3R 5.0 30 60 6 4 d R EHCRC40500516A 5.0 0.5R 5.0 16 60 6 4 EHCRC40500530A 5.0 0.5R 5.0 30 60 6 4 L1 EHCRC40501016A 5.0 1.0R 5.0 16 60 6 4 EHCRC40501030A 5.0 1.0R 5.0 30 60 6 4 L2 EHCRC40600120A 6.0 0.1R 7.0 20 60 6 4 EHCRC40600130A 6.0 0.1R 7.0 30 60 6 4 EHCRC40600220A 6.0 0.2R 7.0 20 60 6 4 EHCRC40600230A 6.0 0.2R 7.0 30 60 6 4 L EHCRC40600320A 6.0 0.3R 7.0 20 60 6 4 15° EHCRC40600330A 6.0 0.3R 7.0 30 60 6 4 EHCRC40600520A 6.0 0.5R 7.0 20 60 6 4 EHCRC40600530A 6.0 0.5R 7.0 30 60 6 4 EHCRC40601020A 6.0 1.0R 7.0 20 60 6 4 EHCRC40601030A 6.0 1.0R 7.0 30 60 6 4 EHCRC40601520A 6.0 1.5R 7.0 20 60 6 4 EHCRC40601530A 6.0 1.5R 7.0 30 60 6 4 D EHCRC40800522A 8.0 0.5R 9.0 22 60 8 4 EHCRC40801022A 8.0 1.0R 9.0 22 60 8 4 EHCRC40801522A 8.0 1.5R 9.0 22 60 8 4 EHCRC40802022A 8.0 2.0R 9.0 22 60 8 4 EHCRC41000524A 10.0 0.5R 11.0 24 75 10 4 EHCRC41001024A 10.0 1.0R 11.0 24 75 10 4 EHCRC41001524A 10.0 1.5R 11.0 24 75 10 4 EHCRC41002024A 10.0 2.0R 11.0 24 75 10 4 EHCRC41200526A 12.0 0.5R 13.0 26 75 12 4 65 EHCRC41201026A 12.0 1.0R 13.0 26 75 12 4 EHCRC41201526A 12.0 1.5R 13.0 26 75 12 4 d Tolerance EHCRC41202026A 12.0 2.0R 13.0 26 75 12 4 Ø 0 ~ 0.02 Cutting conditions ( 建議切削參數表 ) : Table 025 R ± 0.02 A058
