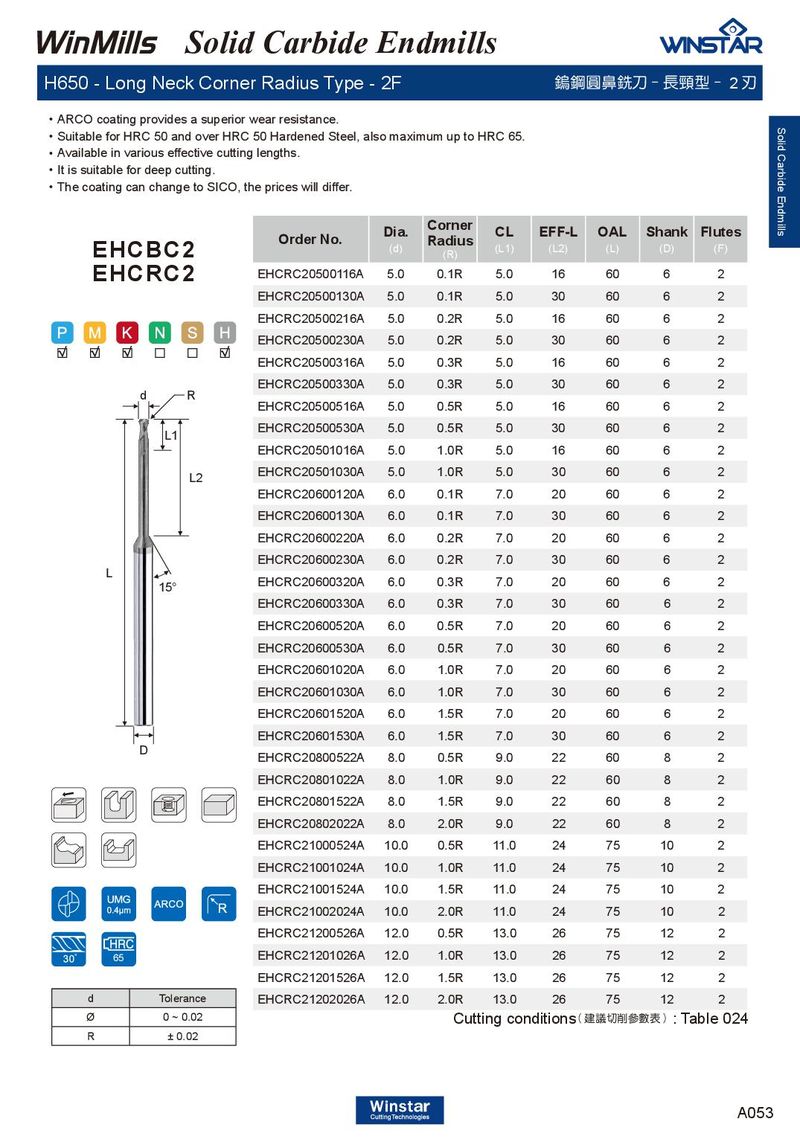

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC2 EHCRC20500116A 5.0 0.1R 5.0 16 60 6 2 EHCRC20500130A 5.0 0.1R 5.0 30 60 6 2 EHCRC20500216A 5.0 0.2R 5.0 16 60 6 2 EHCRC20500230A 5.0 0.2R 5.0 30 60 6 2 EHCRC20500316A 5.0 0.3R 5.0 16 60 6 2 EHCRC20500330A 5.0 0.3R 5.0 30 60 6 2 d R EHCRC20500516A 5.0 0.5R 5.0 16 60 6 2 EHCRC20500530A 5.0 0.5R 5.0 30 60 6 2 L1 EHCRC20501016A 5.0 1.0R 5.0 16 60 6 2 EHCRC20501030A 5.0 1.0R 5.0 30 60 6 2 L2 EHCRC20600120A 6.0 0.1R 7.0 20 60 6 2 EHCRC20600130A 6.0 0.1R 7.0 30 60 6 2 EHCRC20600220A 6.0 0.2R 7.0 20 60 6 2 EHCRC20600230A 6.0 0.2R 7.0 30 60 6 2 L EHCRC20600320A 6.0 0.3R 7.0 20 60 6 2 15° EHCRC20600330A 6.0 0.3R 7.0 30 60 6 2 EHCRC20600520A 6.0 0.5R 7.0 20 60 6 2 EHCRC20600530A 6.0 0.5R 7.0 30 60 6 2 EHCRC20601020A 6.0 1.0R 7.0 20 60 6 2 EHCRC20601030A 6.0 1.0R 7.0 30 60 6 2 EHCRC20601520A 6.0 1.5R 7.0 20 60 6 2 EHCRC20601530A 6.0 1.5R 7.0 30 60 6 2 D EHCRC20800522A 8.0 0.5R 9.0 22 60 8 2 EHCRC20801022A 8.0 1.0R 9.0 22 60 8 2 EHCRC20801522A 8.0 1.5R 9.0 22 60 8 2 EHCRC20802022A 8.0 2.0R 9.0 22 60 8 2 EHCRC21000524A 10.0 0.5R 11.0 24 75 10 2 EHCRC21001024A 10.0 1.0R 11.0 24 75 10 2 EHCRC21001524A 10.0 1.5R 11.0 24 75 10 2 EHCRC21002024A 10.0 2.0R 11.0 24 75 10 2 EHCRC21200526A 12.0 0.5R 13.0 26 75 12 2 65 EHCRC21201026A 12.0 1.0R 13.0 26 75 12 2 EHCRC21201526A 12.0 1.5R 13.0 26 75 12 2 d Tolerance EHCRC21202026A 12.0 2.0R 13.0 26 75 12 2 Ø 0 ~ 0.02 Cutting conditions ( 建議切削參數表 ) : Table 024 R ± 0.02 A053
