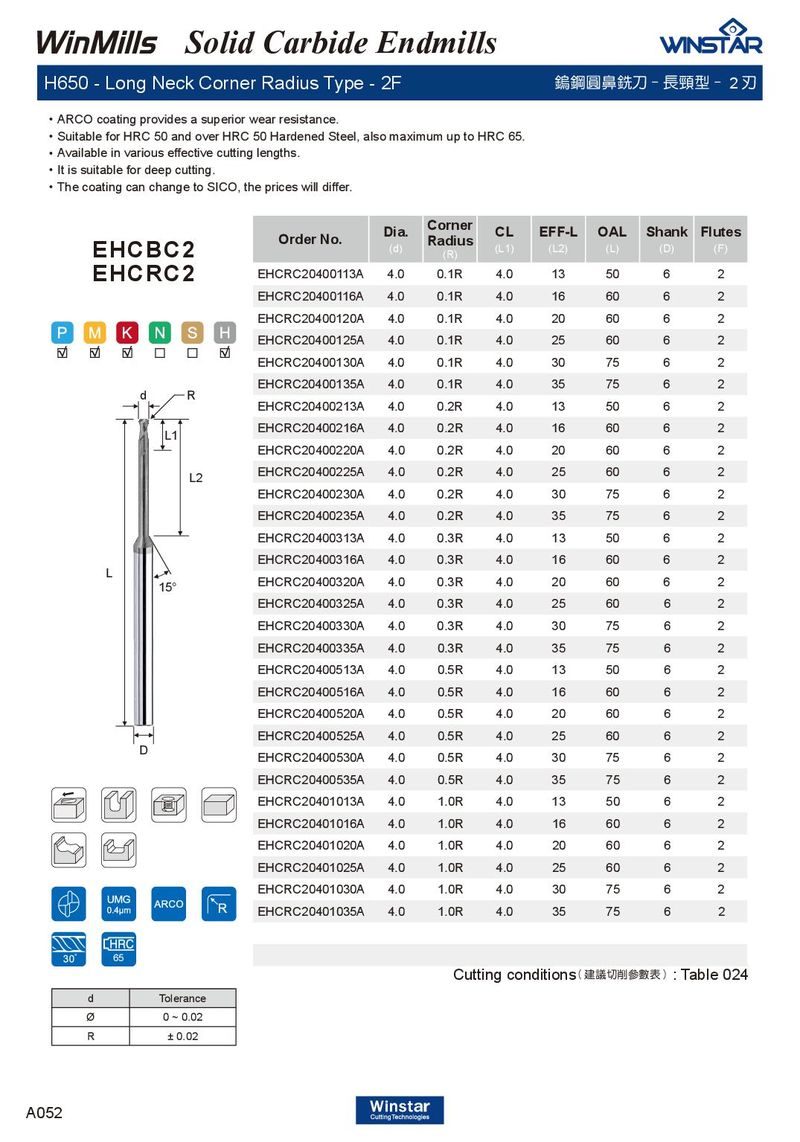

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC2 EHCRC20400113A 4.0 0.1R 4.0 13 50 6 2 EHCRC20400116A 4.0 0.1R 4.0 16 60 6 2 EHCRC20400120A 4.0 0.1R 4.0 20 60 6 2 EHCRC20400125A 4.0 0.1R 4.0 25 60 6 2 EHCRC20400130A 4.0 0.1R 4.0 30 75 6 2 EHCRC20400135A 4.0 0.1R 4.0 35 75 6 2 d R EHCRC20400213A 4.0 0.2R 4.0 13 50 6 2 EHCRC20400216A 4.0 0.2R 4.0 16 60 6 2 L1 EHCRC20400220A 4.0 0.2R 4.0 20 60 6 2 EHCRC20400225A 4.0 0.2R 4.0 25 60 6 2 L2 EHCRC20400230A 4.0 0.2R 4.0 30 75 6 2 EHCRC20400235A 4.0 0.2R 4.0 35 75 6 2 EHCRC20400313A 4.0 0.3R 4.0 13 50 6 2 EHCRC20400316A 4.0 0.3R 4.0 16 60 6 2 L EHCRC20400320A 4.0 0.3R 4.0 20 60 6 2 15° EHCRC20400325A 4.0 0.3R 4.0 25 60 6 2 EHCRC20400330A 4.0 0.3R 4.0 30 75 6 2 EHCRC20400335A 4.0 0.3R 4.0 35 75 6 2 EHCRC20400513A 4.0 0.5R 4.0 13 50 6 2 EHCRC20400516A 4.0 0.5R 4.0 16 60 6 2 EHCRC20400520A 4.0 0.5R 4.0 20 60 6 2 EHCRC20400525A 4.0 0.5R 4.0 25 60 6 2 D EHCRC20400530A 4.0 0.5R 4.0 30 75 6 2 EHCRC20400535A 4.0 0.5R 4.0 35 75 6 2 EHCRC20401013A 4.0 1.0R 4.0 13 50 6 2 EHCRC20401016A 4.0 1.0R 4.0 16 60 6 2 EHCRC20401020A 4.0 1.0R 4.0 20 60 6 2 EHCRC20401025A 4.0 1.0R 4.0 25 60 6 2 EHCRC20401030A 4.0 1.0R 4.0 30 75 6 2 EHCRC20401035A 4.0 1.0R 4.0 35 75 6 2 65 Cutting conditions ( 建議切削參數表 ) : Table 024 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A052
