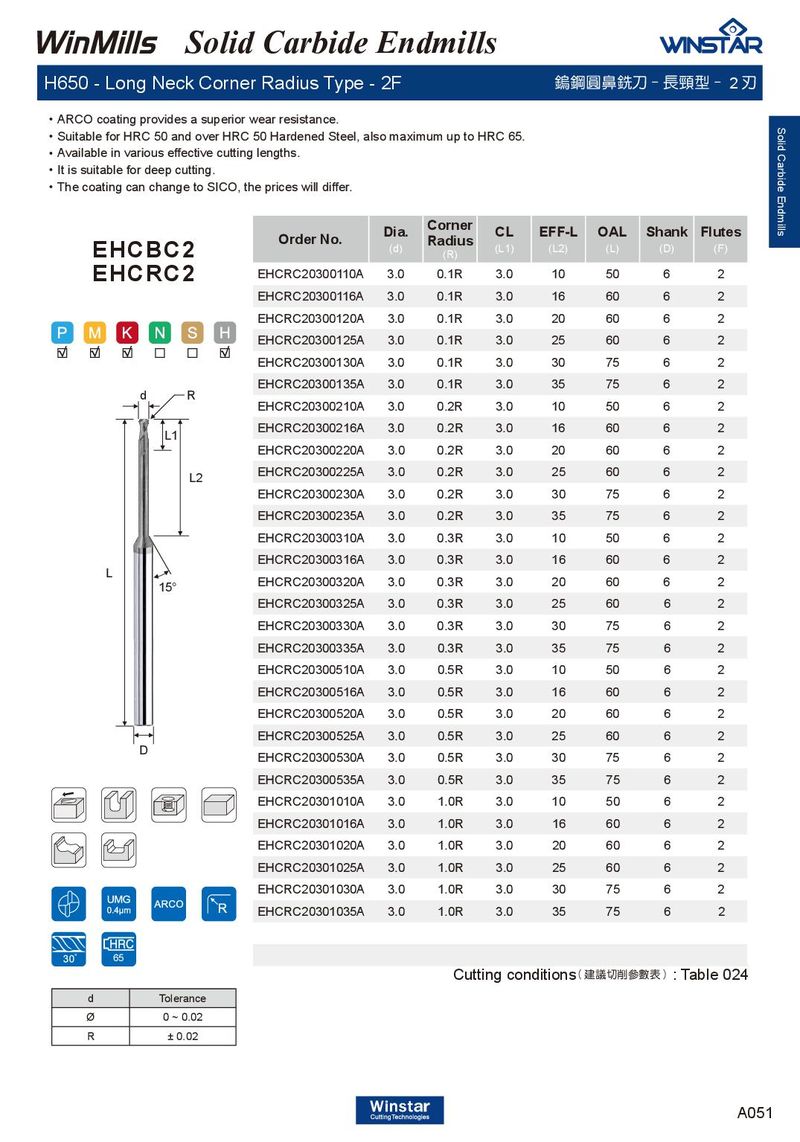

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃 ． ARCO coating provides a superior wear resistance. Solid Carbide Endmills ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC2 (R) EHCRC2 EHCRC20300110A 3.0 0.1R 3.0 10 50 6 2 EHCRC20300116A 3.0 0.1R 3.0 16 60 6 2 EHCRC20300120A 3.0 0.1R 3.0 20 60 6 2 EHCRC20300125A 3.0 0.1R 3.0 25 60 6 2 EHCRC20300130A 3.0 0.1R 3.0 30 75 6 2 EHCRC20300135A 3.0 0.1R 3.0 35 75 6 2 d R EHCRC20300210A 3.0 0.2R 3.0 10 50 6 2 EHCRC20300216A 3.0 0.2R 3.0 16 60 6 2 L1 EHCRC20300220A 3.0 0.2R 3.0 20 60 6 2 EHCRC20300225A 3.0 0.2R 3.0 25 60 6 2 L2 EHCRC20300230A 3.0 0.2R 3.0 30 75 6 2 EHCRC20300235A 3.0 0.2R 3.0 35 75 6 2 EHCRC20300310A 3.0 0.3R 3.0 10 50 6 2 EHCRC20300316A 3.0 0.3R 3.0 16 60 6 2 L EHCRC20300320A 3.0 0.3R 3.0 20 60 6 2 15° EHCRC20300325A 3.0 0.3R 3.0 25 60 6 2 EHCRC20300330A 3.0 0.3R 3.0 30 75 6 2 EHCRC20300335A 3.0 0.3R 3.0 35 75 6 2 EHCRC20300510A 3.0 0.5R 3.0 10 50 6 2 EHCRC20300516A 3.0 0.5R 3.0 16 60 6 2 EHCRC20300520A 3.0 0.5R 3.0 20 60 6 2 EHCRC20300525A 3.0 0.5R 3.0 25 60 6 2 D EHCRC20300530A 3.0 0.5R 3.0 30 75 6 2 EHCRC20300535A 3.0 0.5R 3.0 35 75 6 2 EHCRC20301010A 3.0 1.0R 3.0 10 50 6 2 EHCRC20301016A 3.0 1.0R 3.0 16 60 6 2 EHCRC20301020A 3.0 1.0R 3.0 20 60 6 2 EHCRC20301025A 3.0 1.0R 3.0 25 60 6 2 EHCRC20301030A 3.0 1.0R 3.0 30 75 6 2 EHCRC20301035A 3.0 1.0R 3.0 35 75 6 2 65 Cutting conditions ( 建議切削參數表 ) : Table 024 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A051
