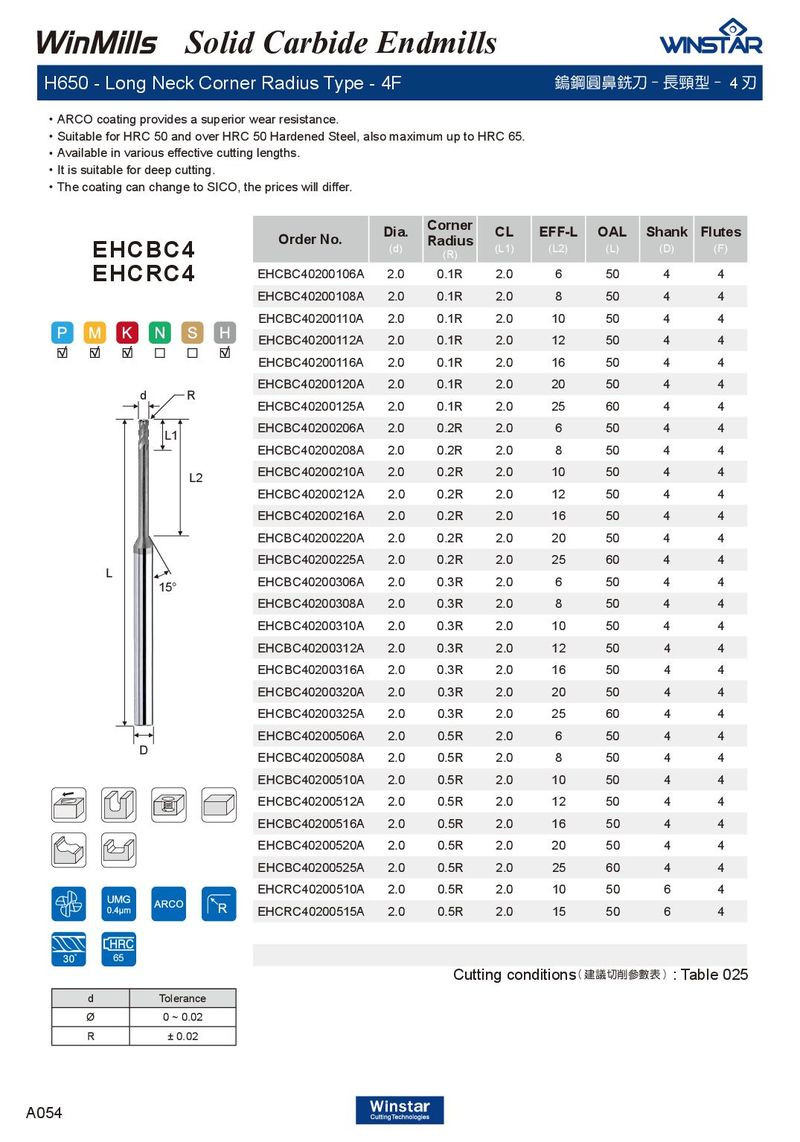

Solid Carbide Endmills H650 - Long Neck Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長頸型 - 4 刃 ． ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EHCBC4 (R) EHCRC4 EHCBC40200106A 2.0 0.1R 2.0 6 50 4 4 EHCBC40200108A 2.0 0.1R 2.0 8 50 4 4 EHCBC40200110A 2.0 0.1R 2.0 10 50 4 4 EHCBC40200112A 2.0 0.1R 2.0 12 50 4 4 EHCBC40200116A 2.0 0.1R 2.0 16 50 4 4 EHCBC40200120A 2.0 0.1R 2.0 20 50 4 4 d R EHCBC40200125A 2.0 0.1R 2.0 25 60 4 4 EHCBC40200206A 2.0 0.2R 2.0 6 50 4 4 L1 EHCBC40200208A 2.0 0.2R 2.0 8 50 4 4 EHCBC40200210A 2.0 0.2R 2.0 10 50 4 4 L2 EHCBC40200212A 2.0 0.2R 2.0 12 50 4 4 EHCBC40200216A 2.0 0.2R 2.0 16 50 4 4 EHCBC40200220A 2.0 0.2R 2.0 20 50 4 4 EHCBC40200225A 2.0 0.2R 2.0 25 60 4 4 L EHCBC40200306A 2.0 0.3R 2.0 6 50 4 4 15° EHCBC40200308A 2.0 0.3R 2.0 8 50 4 4 EHCBC40200310A 2.0 0.3R 2.0 10 50 4 4 EHCBC40200312A 2.0 0.3R 2.0 12 50 4 4 EHCBC40200316A 2.0 0.3R 2.0 16 50 4 4 EHCBC40200320A 2.0 0.3R 2.0 20 50 4 4 EHCBC40200325A 2.0 0.3R 2.0 25 60 4 4 EHCBC40200506A 2.0 0.5R 2.0 6 50 4 4 D EHCBC40200508A 2.0 0.5R 2.0 8 50 4 4 EHCBC40200510A 2.0 0.5R 2.0 10 50 4 4 EHCBC40200512A 2.0 0.5R 2.0 12 50 4 4 EHCBC40200516A 2.0 0.5R 2.0 16 50 4 4 EHCBC40200520A 2.0 0.5R 2.0 20 50 4 4 EHCBC40200525A 2.0 0.5R 2.0 25 60 4 4 EHCRC40200510A 2.0 0.5R 2.0 10 50 6 4 EHCRC40200515A 2.0 0.5R 2.0 15 50 6 4 65 Cutting conditions ( 建議切削參數表 ) : Table 025 d Tolerance Ø 0 ~ 0.02 R ± 0.02 A054
