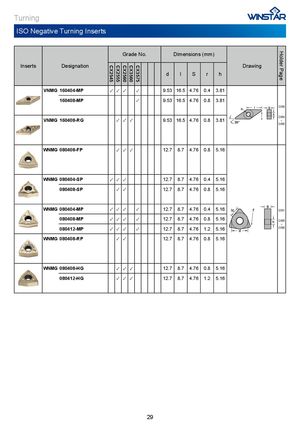

Брошюра Winstar пластины 2021 - страница 32

CX2545 CX2555 CX2560 CX3560 CX3575 Holder Page Turning ISO Negative Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h VNMG 160404-MP ✓ ✓ ✓ ✓ 9.53 16.5 4.76 0.4 3.81 160408-MP ✓ 9.53 16.5 4.76 0.8 3.81 C030 C054 VNMG 160408-RG ✓ ✓ ✓ 9.53 16.5 4.76 0.8 3.81 ~ C055 WNMG 080408-FP ✓ ✓ ✓ 12.7 8.7 4.76 0.8 5.16 WNMG 080404-SP ✓ ✓ ✓ 12.7 8.7 4.76 0.4 5.16 080408-SP ✓ ✓ 12.7 8.7 4.76 0.8 5.16 WNMG 080404-MP ✓ ✓ ✓ ✓ 12.7 8.7 4.76 0.4 5.16 C031 080408-MP ✓ ✓ ✓ ✓ 12.7 8.7 4.76 0.8 5.16 C055 ~ 080412-MP ✓ ✓ ✓ ✓ 12.7 8.7 4.76 1.2 5.16 C056 WNMG 080408-RP ✓ ✓ 12.7 8.7 4.76 0.8 5.16 WNMG 080408-HG ✓ ✓ ✓ 12.7 8.7 4.76 0.8 5.16 080412-HG ✓ ✓ ✓ 12.7 8.7 4.76 1.2 5.16 29
