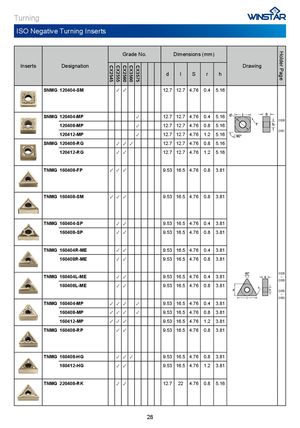

CX2545 CX2555 CX2560 CX3560 CX3575 Holder Page Turning ISO Negative Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h SNMG 120404-SM ✓ ✓ 12.7 12.7 4.76 0.4 5.16 SNMG 120404-MP ✓ 12.7 12.7 4.76 0.4 5.16 C028 120408-MP ✓ 12.7 12.7 4.76 0.8 5.16 C051 120412-MP ✓ 12.7 12.7 4.76 1.2 5.16 SNMG 120408-RG ✓ ✓ ✓ 12.7 12.7 4.76 0.8 5.16 120412-RG ✓ ✓ 12.7 12.7 4.76 1.2 5.16 TNMG 160408-FP ✓ ✓ ✓ 9.53 16.5 4.76 0.8 3.81 TNMG 160408-SM ✓ ✓ ✓ 9.53 16.5 4.76 0.8 3.81 TNMG 160404-SP ✓ ✓ 9.53 16.5 4.76 0.4 3.81 160408-SP ✓ ✓ 9.53 16.5 4.76 0.8 3.81 TNMG 160404R-ME ✓ ✓ 9.53 16.5 4.76 0.4 3.81 160408R-ME ✓ ✓ 9.53 16.5 4.76 0.8 3.81 C028 TNMG 160404L-ME ✓ ✓ 9.53 16.5 4.76 0.4 3.81 ~ C030 160408L-ME ✓ ✓ 9.53 16.5 4.76 0.8 3.81 C050 ~ C053 TNMG 160404-MP ✓ ✓ ✓ ✓ 9.53 16.5 4.76 0.4 3.81 160408-MP ✓ ✓ ✓ ✓ 9.53 16.5 4.76 0.8 3.81 160412-MP ✓ ✓ ✓ 9.53 16.5 4.76 1.2 3.81 TNMG 160408-RP ✓ ✓ 9.53 16.5 4.76 0.8 3.81 TNMG 160408-HG ✓ ✓ ✓ 9.53 16.5 4.76 0.8 3.81 160412-HG ✓ ✓ 9.53 16.5 4.76 1.2 3.81 TNMG 220408-RK ✓ ✓ 12.7 22 4.76 0.8 5.16 28
