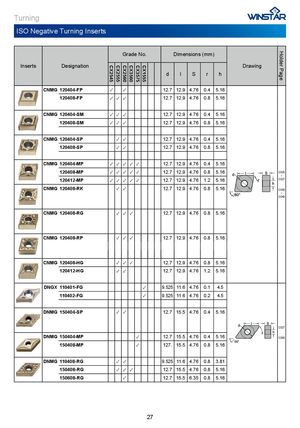

CX2545 CX2555 CX2560 CX3560 CX3575 CX1555 Holder Page Turning ISO Negative Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h CNMG 120404-FP ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-FP ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120404-SM ✓ ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-SM ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120404-SP ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-SP ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120404-MP ✓ ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.4 5.16 120408-MP ✓ ✓ ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 C025 ~ 120412-MP ✓ ✓ ✓ ✓ ✓ 12.7 12.9 4.76 1.2 5.16 C027 CNMG 120408-RK ✓ ✓ 12.7 12.9 4.76 0.8 5.16 C048 ~ C049 CNMG 120408-RG ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120408-RP ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 CNMG 120408-HG ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.16 120412-HG ✓ ✓ 12.7 12.9 4.76 1.2 5.16 DNGX 110401-FG ✓ 9.525 11.6 4.76 0.1 4.5 110402-FG ✓ 9.525 11.6 4.76 0.2 4.5 DNMG 150404-SP ✓ ✓ 12.7 15.5 4.76 0.4 5.16 C027 DNMG 150404-MP ✓ 12.7 15.5 4.76 0.4 5.16 C050 150408-MP ✓ 127. 15.5 4.76 0.8 5.16 DNMG 110408-RG ✓ ✓ 9.525 11.6 4.76 0.8 3.81 150408-RG ✓ ✓ ✓ 12.7 15.5 4.76 0.8 5.16 150608-RG ✓ 12.7 15.5 6.35 0.8 5.16 27
