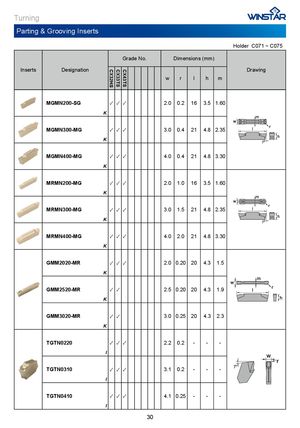

CX32HS CX33TS CX43TS Turning Parting & Grooving Inserts Holder C071 ~ C075 Grade No. Dimensions (mm) Inserts Designation Drawing w r l h m MGMN200-SG ✓ ✓ ✓ 2.0 0.2 16 3.5 1.60 K MGMN300-MG ✓ ✓ ✓ 3.0 0.4 21 4.8 2.35 K MGMN400-MG ✓ ✓ ✓ 4.0 0.4 21 4.8 3.30 K MRMN200-MG ✓ ✓ ✓ 2.0 1.0 16 3.5 1.60 K MRMN300-MG ✓ ✓ ✓ 3.0 1.5 21 4.8 2.35 K MRMN400-MG ✓ ✓ ✓ 4.0 2.0 21 4.8 3.30 K GMM2020-MR ✓ ✓ ✓ 2.0 0.20 20 4.3 1.5 K GMM2520-MR ✓ ✓ 2.5 0.20 20 4.3 1.9 K GMM3020-MR ✓ ✓ 3.0 0.25 20 4.3 2.3 K TGTN0220 ✓ ✓ ✓ 2.2 0.2 - - - I TGTN0310 ✓ ✓ ✓ 3.1 0.2 - - - I TGTN0410 ✓ ✓ ✓ 4.1 0.25 - - - I 30
