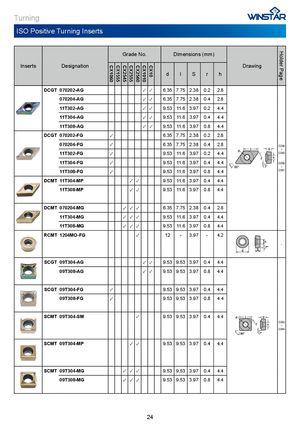

CX1060 CX1555 CX2545 CX2555 CX2560 CX1010 CX10 Holder Page Turning ISO Positive Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h DCGT 070202-AG ✓ ✓ 6.35 7.75 2.38 0.2 2.8 070204-AG ✓ ✓ 6.35 7.75 2.38 0.4 2.8 11T302-AG ✓ ✓ 9.53 11.6 3.97 0.2 4.4 11T304-AG ✓ ✓ 9.53 11.6 3.97 0.4 4.4 11T308-AG ✓ ✓ 9.53 11.6 3.97 0.8 4.4 DCGT 070202-FG ✓ 6.35 7.75 2.38 0.2 2.8 070204-FG ✓ 6.35 7.75 2.38 0.4 2.8 C036 ~ 11T302-FG ✓ 9.53 11.6 3.97 0.2 4.4 C040 11T304-FG ✓ 9.53 11.6 3.97 0.4 4.4 C059 ~ 11T308-FG ✓ 9.53 11.6 3.97 0.8 4.4 C061 DCMT 11T304-MP ✓ ✓ 9.53 11.6 3.97 0.4 4.4 11T308-MP ✓ ✓ 9.53 11.6 3.97 0.8 4.4 DCMT 070204-MG ✓ ✓ ✓ 6.35 7.75 2.38 0.4 2.8 11T304-MG ✓ ✓ ✓ 9.53 11.6 3.97 0.4 4.4 11T308-MG ✓ ✓ ✓ 9.53 11.6 3.97 0.8 4.4 RCMT 1204MO-FG ✓ 12 - 3.97 - 4.2 - SCGT 09T304-AG ✓ ✓ 9.53 9.53 3.97 0.4 4.4 09T308-AG ✓ ✓ 9.53 9.53 3.97 0.8 4.4 SCGT 09T304-FG ✓ 9.53 9.53 3.97 0.4 4.4 09T308-FG ✓ 9.53 9.53 3.97 0.8 4.4 SCMT 09T304-SM ✓ 9.53 9.53 3.97 0.4 4.4 C062 ~ C064 SCMT 09T304-MP ✓ ✓ 9.53 9.53 3.97 0.4 4.4 SCMT 09T304-MG ✓ ✓ ✓ 9.53 9.53 3.97 0.4 4.4 09T308-MG ✓ ✓ ✓ 9.53 9.53 3.97 0.8 4.4 24
