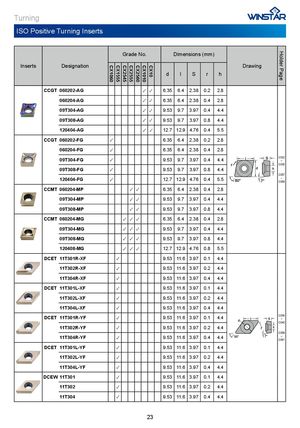

CX1060 CX1555 CX2545 CX2555 CX2560 CX1010 CX10 Holder Page Turning ISO Positive Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h CCGT 060202-AG ✓ ✓ 6.35 6.4 2.38 0.2 2.8 060204-AG ✓ ✓ 6.35 6.4 2.38 0.4 2.8 09T304-AG ✓ ✓ 9.53 9.7 3.97 0.4 4.4 09T308-AG ✓ ✓ 9.53 9.7 3.97 0.8 4.4 120404-AG ✓ ✓ 12.7 12.9 4.76 0.4 5.5 CCGT 060202-FG ✓ 6.35 6.4 2.38 0.2 2.8 060204-FG ✓ 6.35 6.4 2.38 0.4 2.8 09T304-FG ✓ 9.53 9.7 3.97 0.4 4.4 C032~ C035 09T308-FG ✓ 9.53 9.7 3.97 0.8 4.4 C057 120404-FG ✓ 12.7 12.9 4.76 0.4 5.5 ~C059 CCMT 060204-MP ✓ ✓ 6.35 6.4 2.38 0.4 2.8 09T304-MP ✓ ✓ 9.53 9.7 3.97 0.4 4.4 09T308-MP ✓ ✓ 9.53 9.7 3.97 0.8 4.4 CCMT 060204-MG ✓ ✓ ✓ 6.35 6.4 2.38 0.4 2.8 09T304-MG ✓ ✓ ✓ 9.53 9.7 3.97 0.4 4.4 09T308-MG ✓ ✓ ✓ 9.53 9.7 3.97 0.8 4.4 120408-MG ✓ ✓ ✓ 12.7 12.9 4.76 0.8 5.5 DCET 11T301R-XF ✓ 9.53 11.6 3.97 0.1 4.4 11T302R-XF ✓ 9.53 11.6 3.97 0.2 4.4 11T304R-XF ✓ 9.53 11.6 3.97 0.4 4.4 DCET 11T301L-XF ✓ 9.53 11.6 3.97 0.1 4.4 11T302L-XF ✓ 9.53 11.6 3.97 0.2 4.4 11T304L-XF ✓ 9.53 11.6 3.97 0.4 4.4 DCET 11T301R-YF ✓ 9.53 11.6 3.97 0.1 4.4 C036~ C040 11T302R-YF ✓ 9.53 11.6 3.97 0.2 4.4 C059 11T304R-YF ✓ 9.53 11.6 3.97 0.4 4.4 ~C061 DCET 11T301L-YF ✓ 9.53 11.6 3.97 0.1 4.4 11T302L-YF ✓ 9.53 11.6 3.97 0.2 4.4 11T304L-YF ✓ 9.53 11.6 3.97 0.4 4.4 DCEW 11T301 ✓ 9.53 11.6 3.97 0.1 4.4 11T302 ✓ 9.53 11.6 3.97 0.2 4.4 11T304 ✓ 9.53 11.6 3.97 0.4 4.4 23
